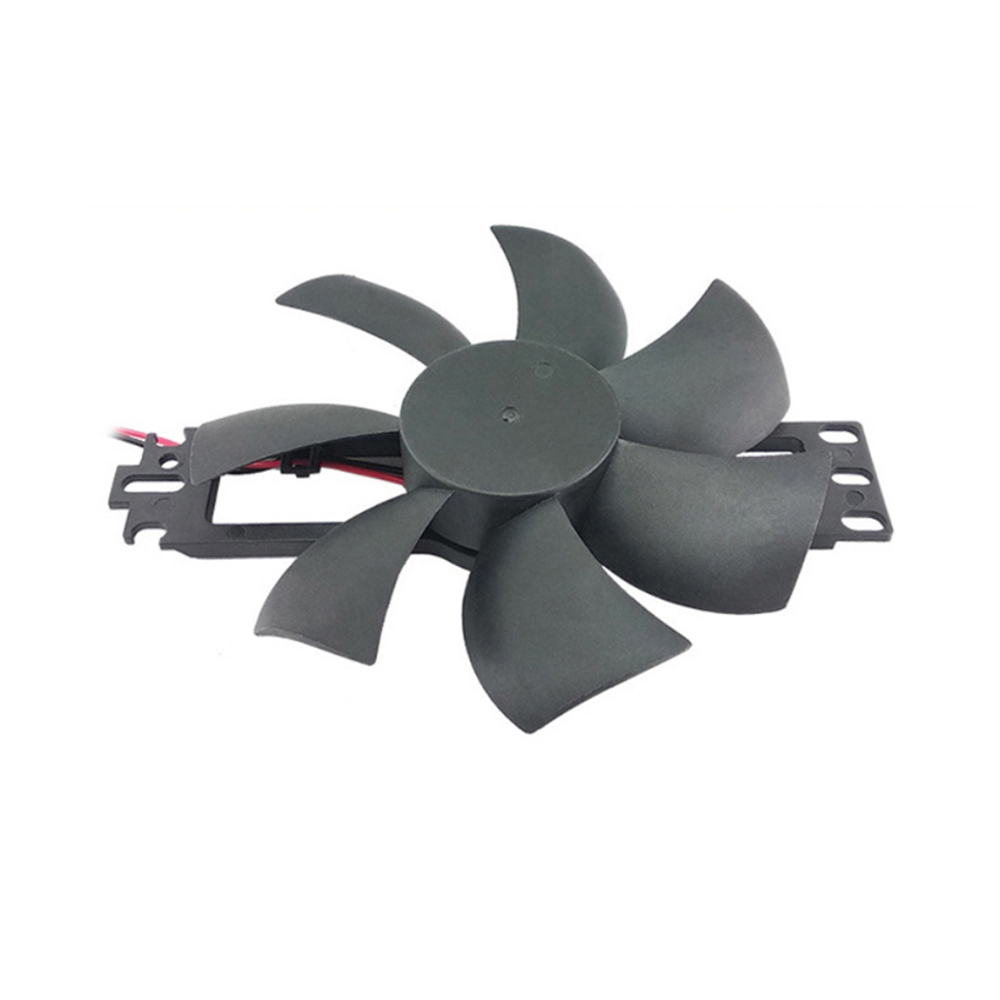

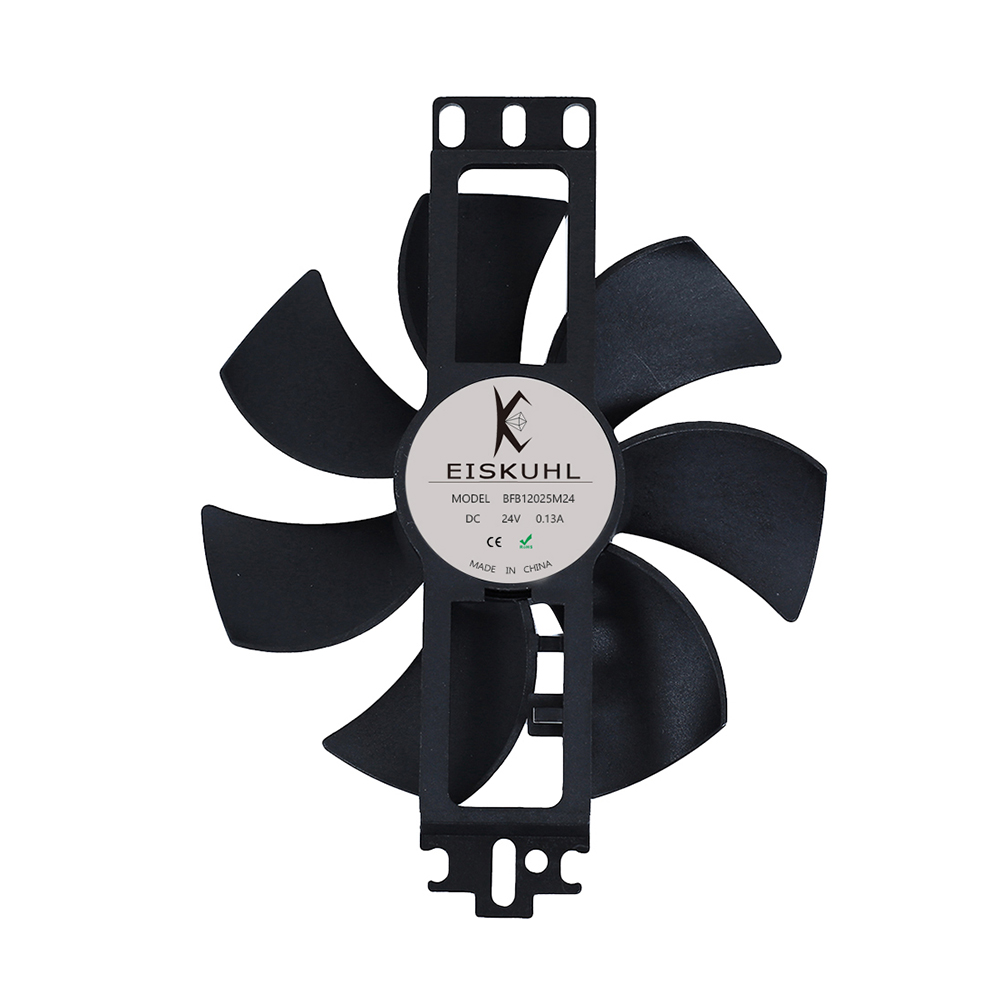

BFB12025M24 120*120*25mm 12025 Frameless DC Bracket Fan for Induction Cooker 24V

BFB12025M24

Model Size: 120*120*25mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions120x120x25mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance70,000 hrs by ball bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Wire

UL1007 #24

Nominal Data

Type of Voltage
DC
Nominal Valtagein V24
Airflowin CFM71.03
Air Pressurein mmH2O2.60
Speedin RPM2000
Rated Currentin A0.10
Power Inputin W2.4
Sound Pressure Levelin dB(A)35.52
Nominal Valtage rangein VDC14~27.6V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~75°C (Non-condensing)
Operating Humidity5%~90%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
