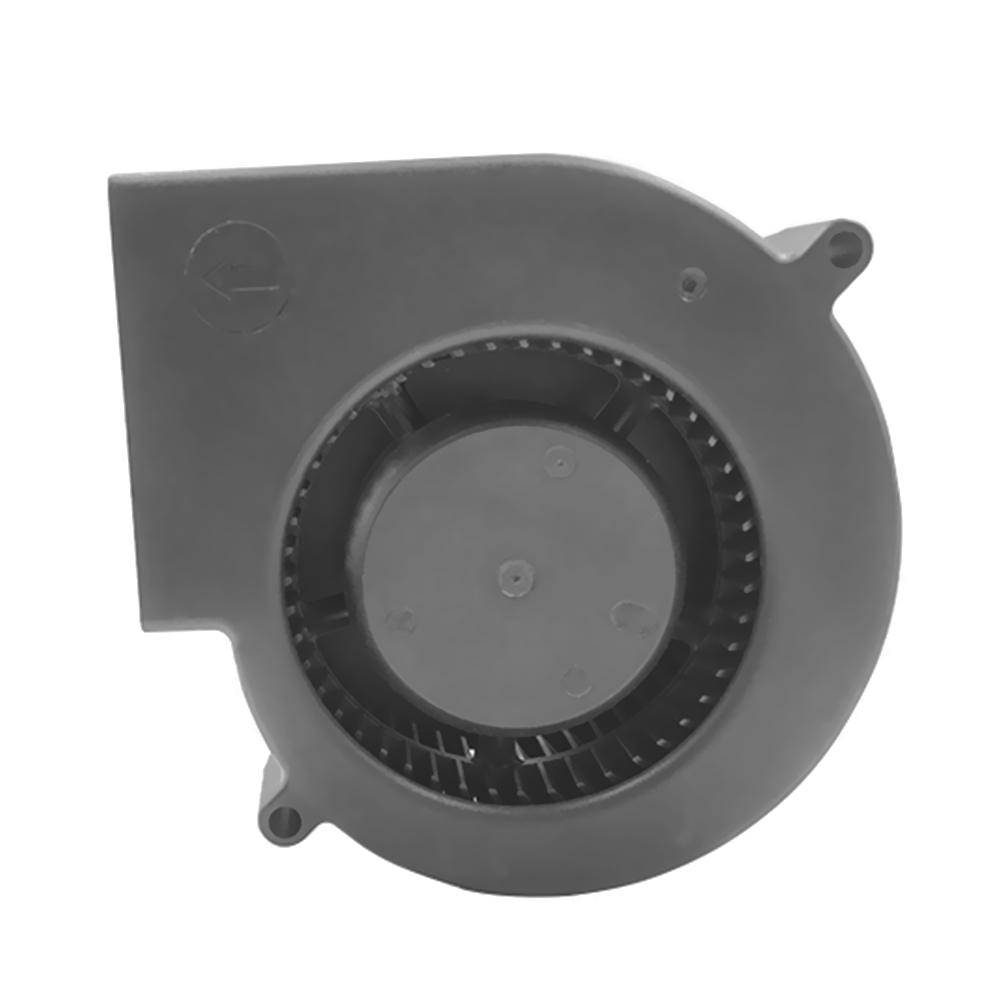

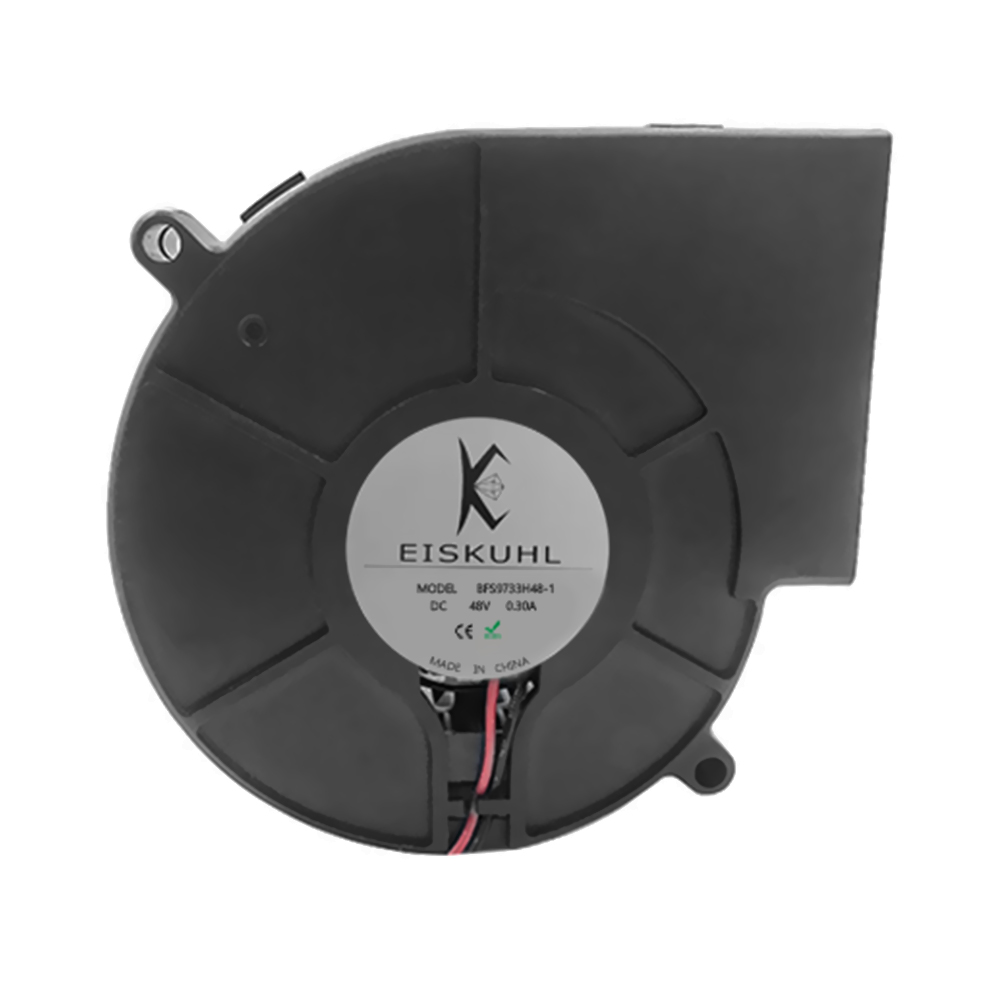

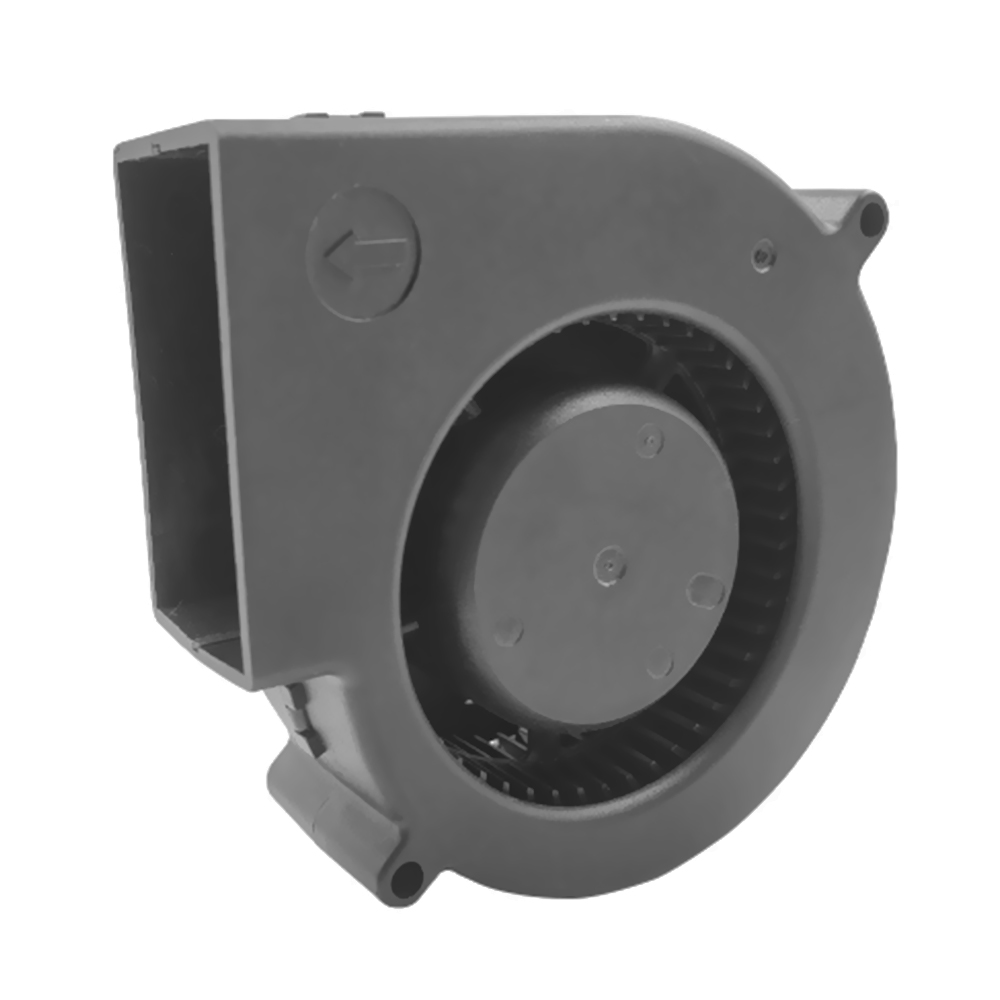

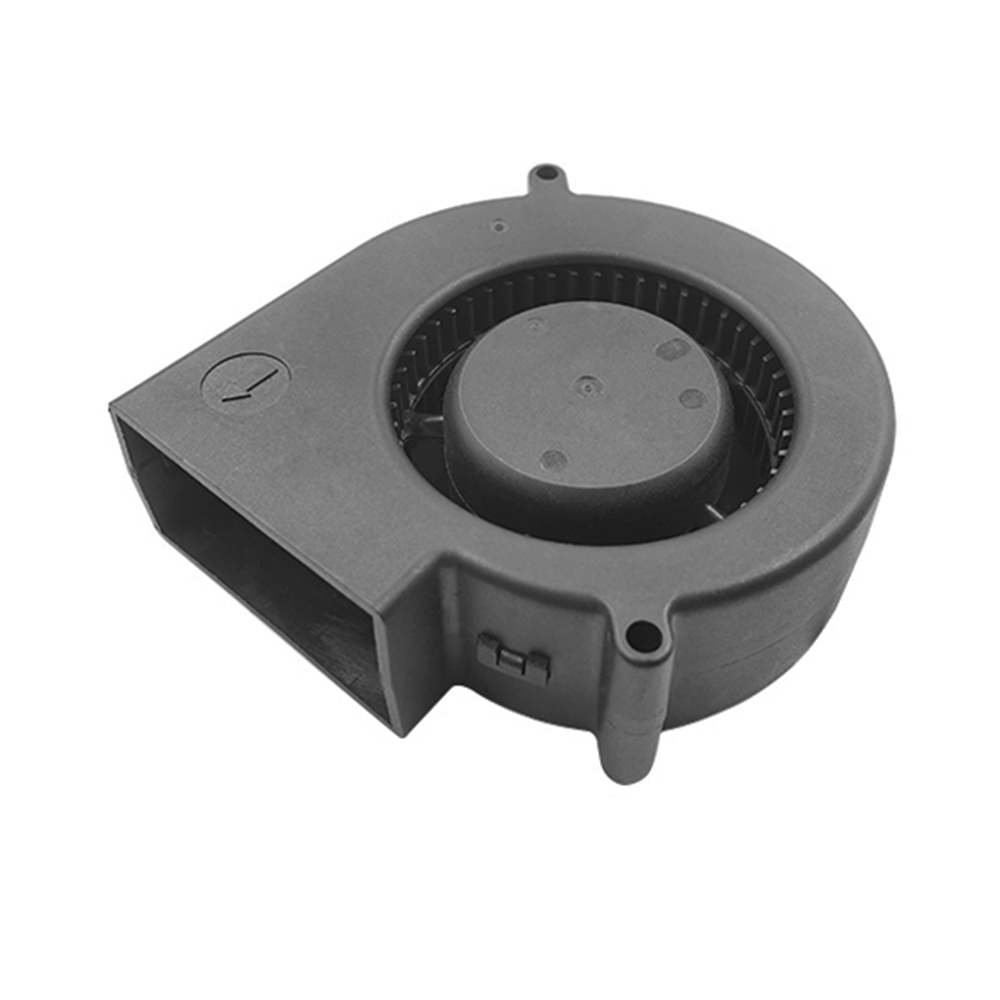

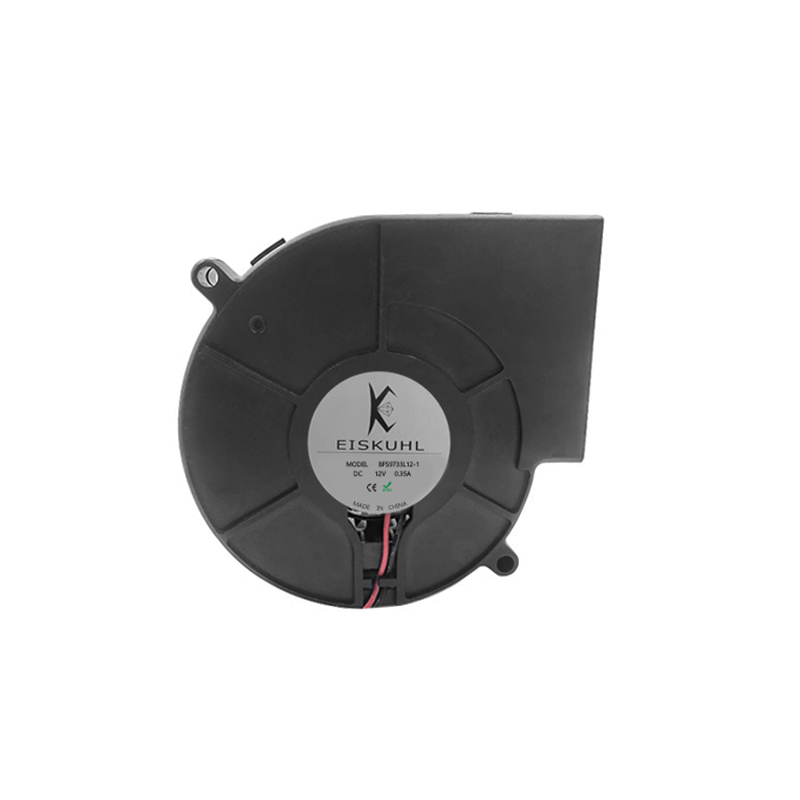

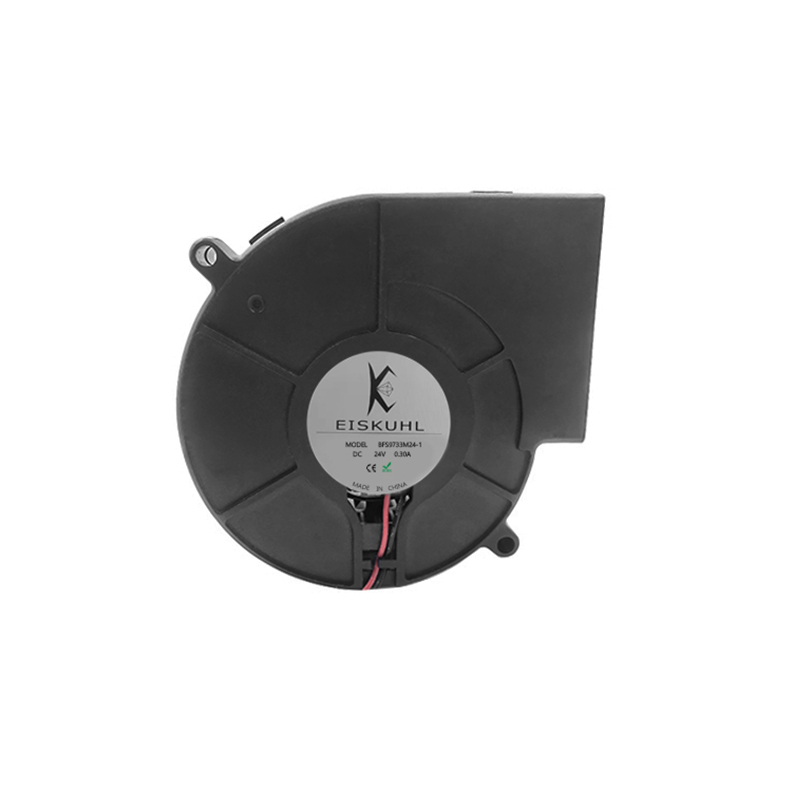

Model Size: 97*95*33mm
Motor: DC Blower Fan Motor
Bearing: Ball/Sleeve
Weight:185g
Direction of rotation:Clockwise,viewed toward rotor

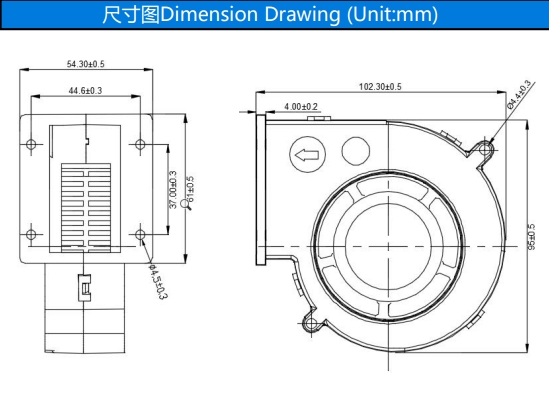

| Dimensions | 97x95x33mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 50,000 hrs by ball bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 48 |

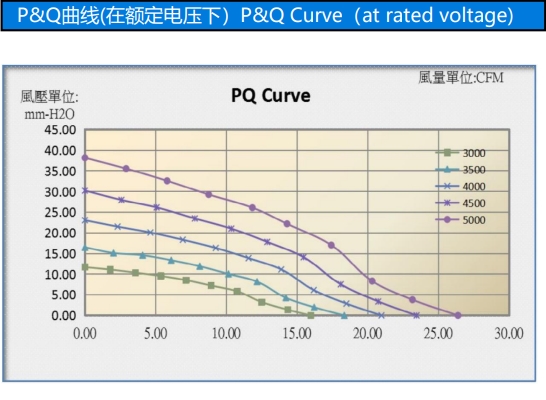

| Airflow | in CFM | 26.38 |
| Air Pressure | in mmH2O | 38.18 |
| Speed | in RPM | 5000 |
| Rated Current | in A | 0.30 |
| Power Input | in W | 14.40 |
| Noise | in dB(A) | 55.1 |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~75°C(Non-condensing) |
| Operating Humidity | 5%~90%RH |
| Storage Humidity | 5%~95%RH |
