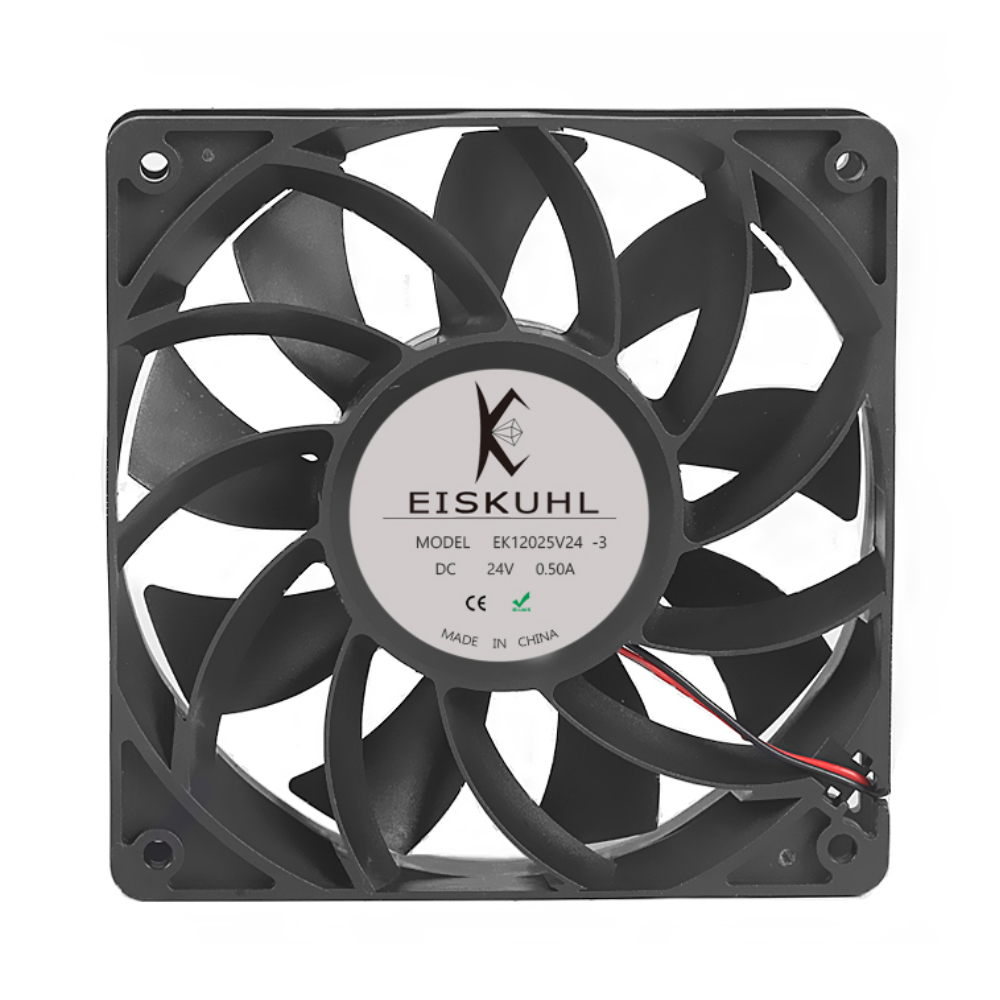

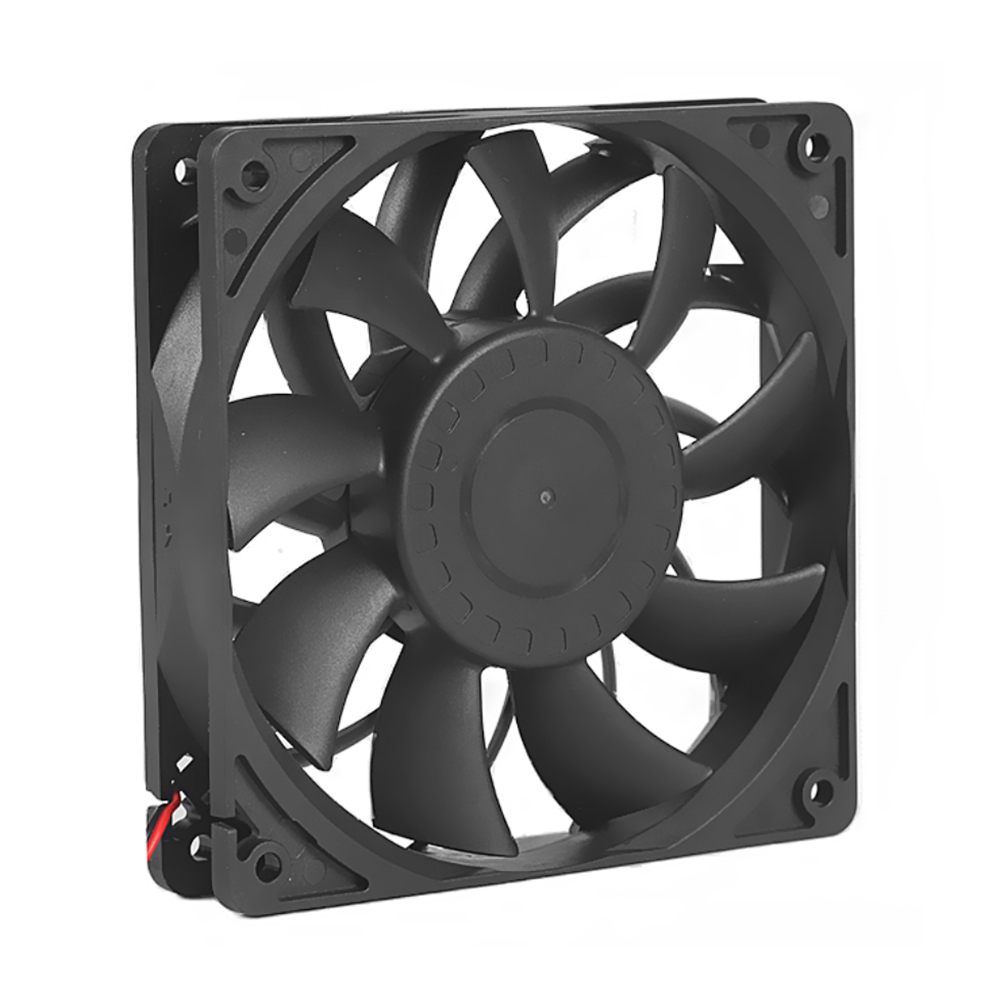

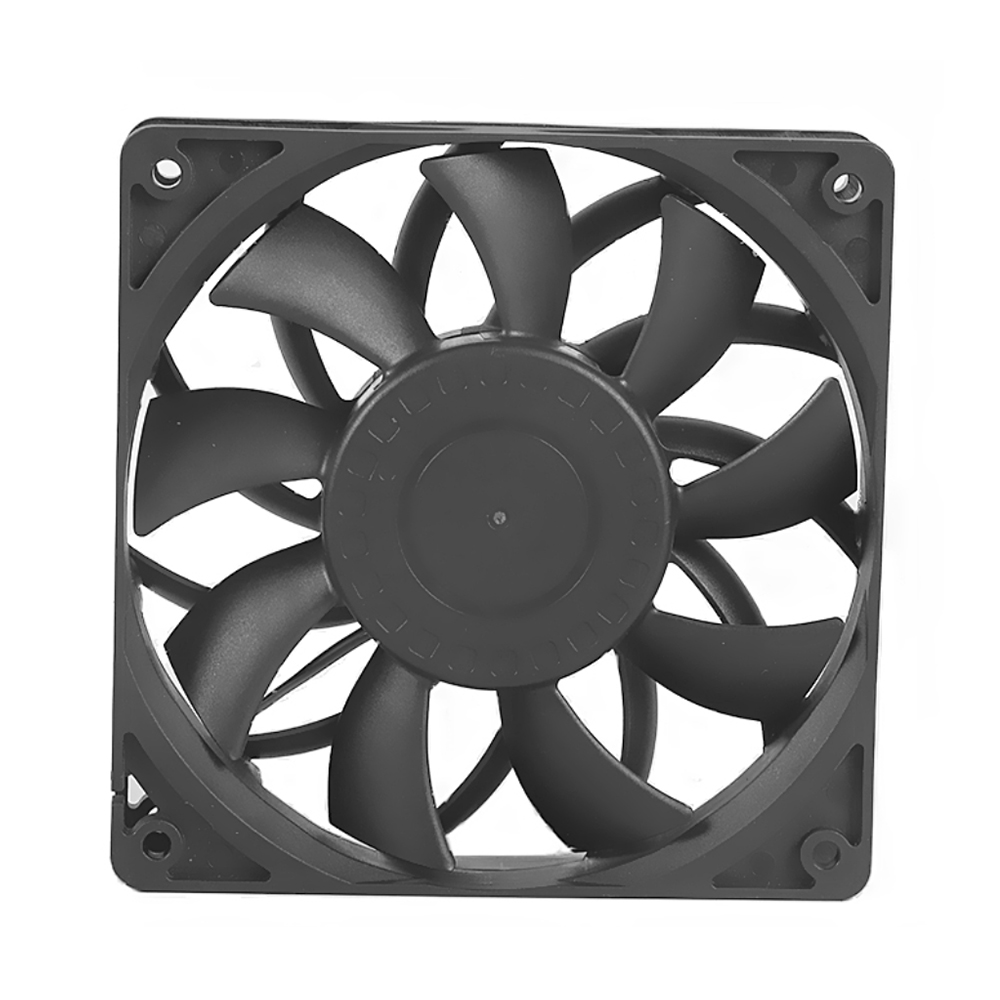

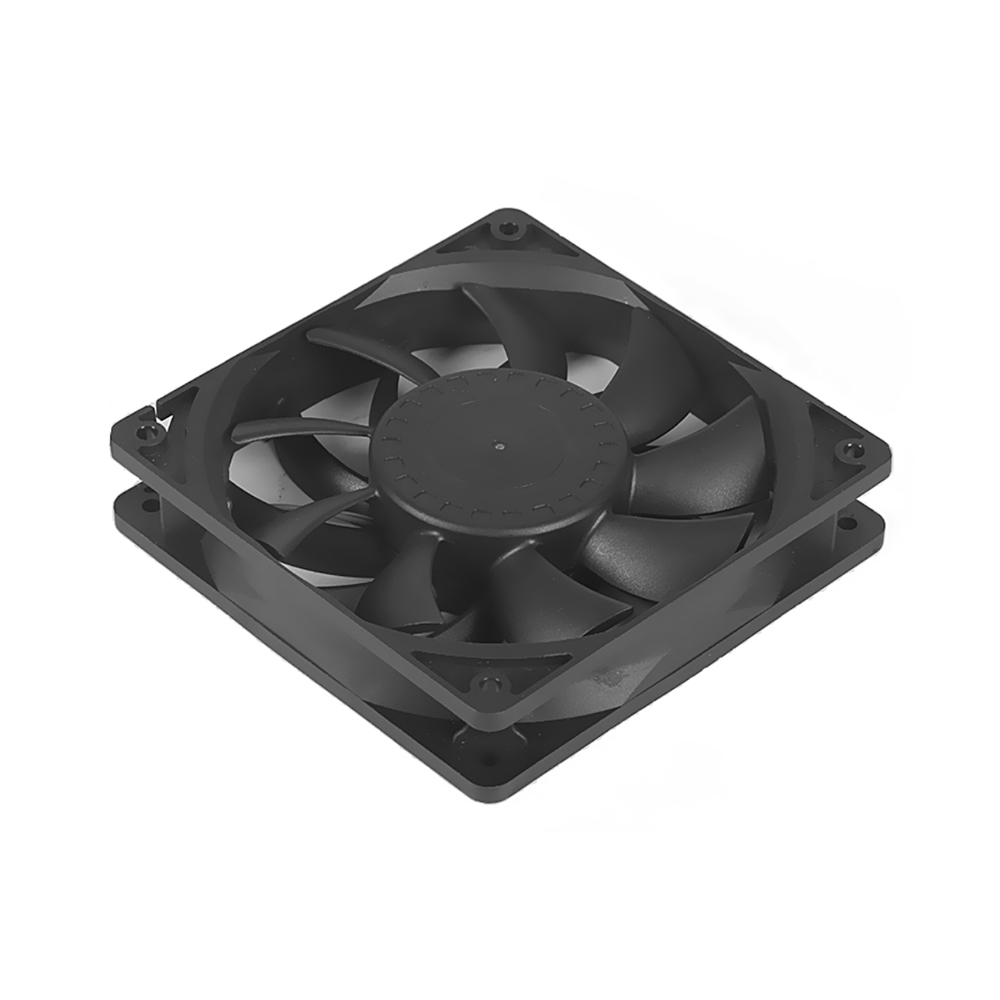

Model Size: 120*120*25mm
Motor:DC Brushless Fan Motor
Bearing:Ball/Sleeve/Hydraulic
Weight: 195g
Direction of rotation:Clockwise,viewed toward rotor
| Dimensions | 120x120x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 60,000 hrs by sleeve bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Optional wire | "Sensor"yellow/"PWM"blue |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 24 |
| Airflow | in CFM | 124.47 |
| Air Pressure | in mmH2O | 10.28 |
| Speed | in RPM | 4000 |
| Rated Current | in A | 0.50 |
| Power Input | in W | 12.0 |
| Sound Pressure Level | in dB(A) | 56.4 |
| Nominal Valtage range | in V | DC14~27.6V |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~80°C (Non-condensing) |
| Operating Humidity | 5%~95%RH |
| Storage Humidity | 5%~95%RH |
