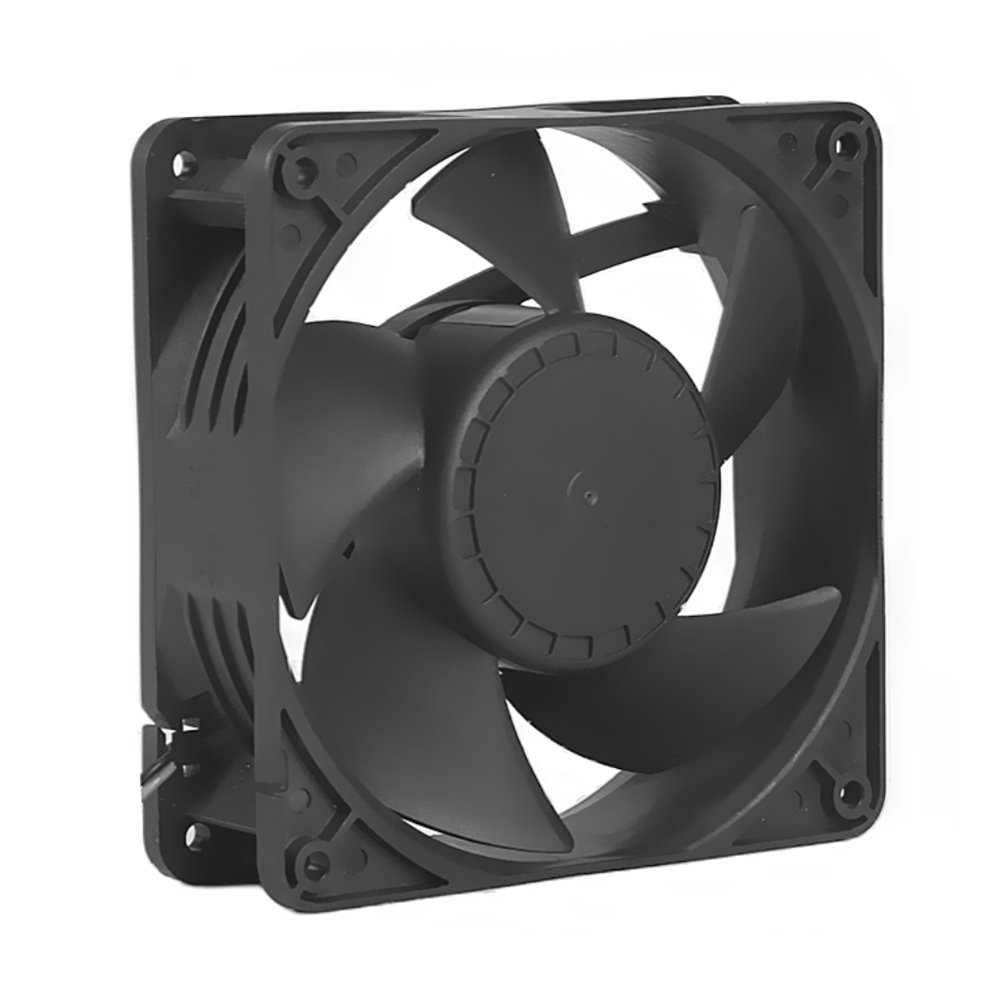

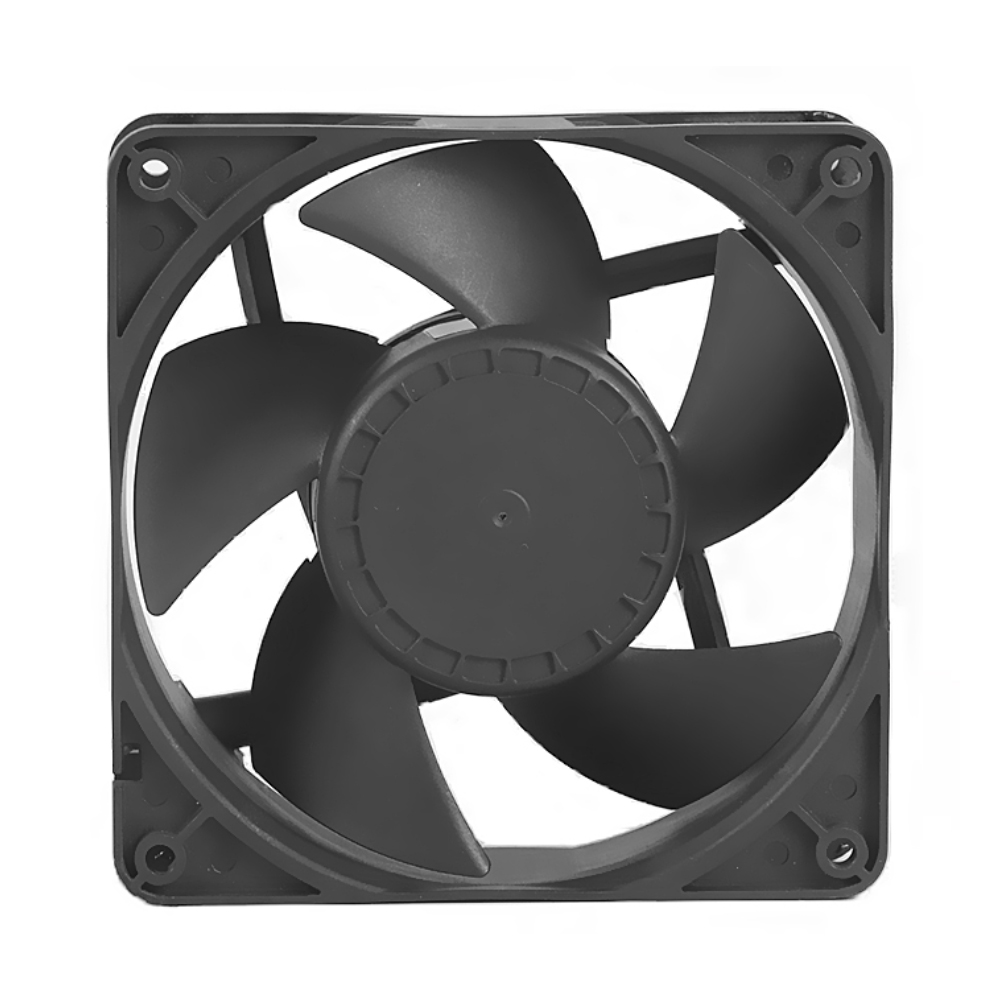

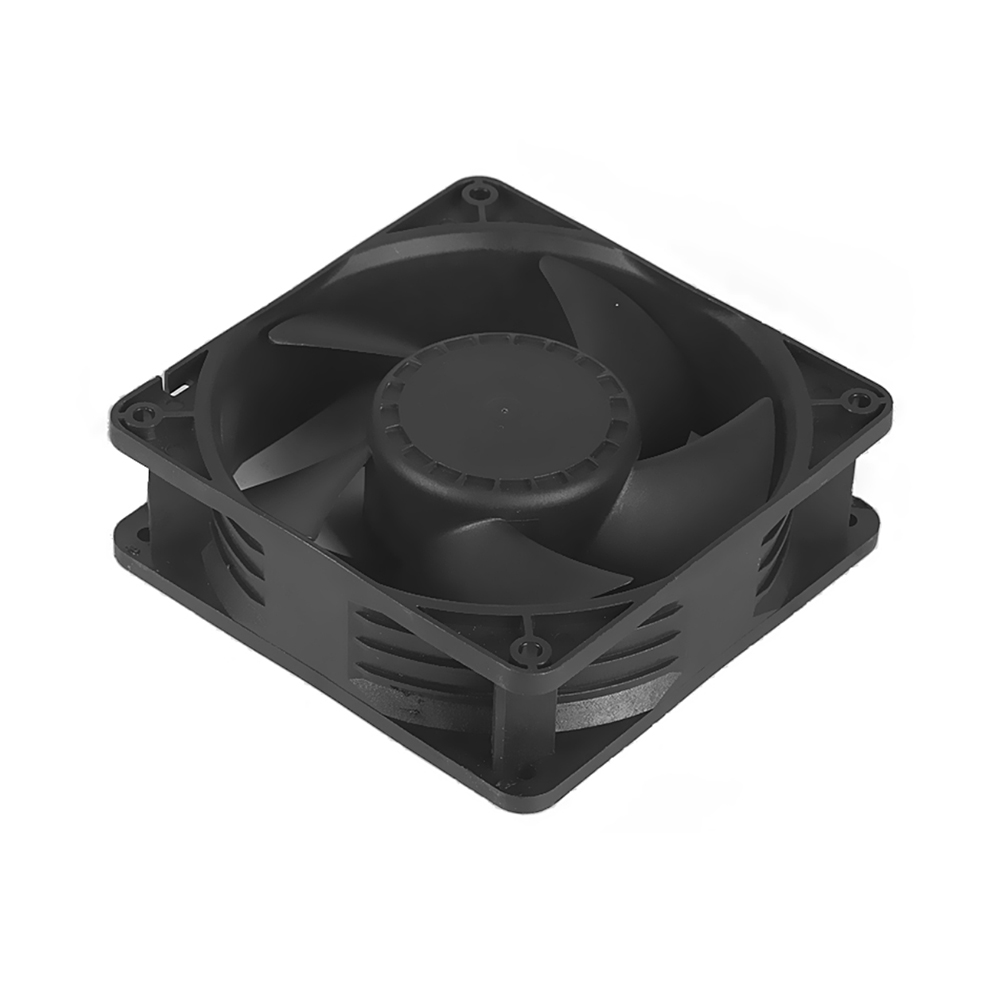

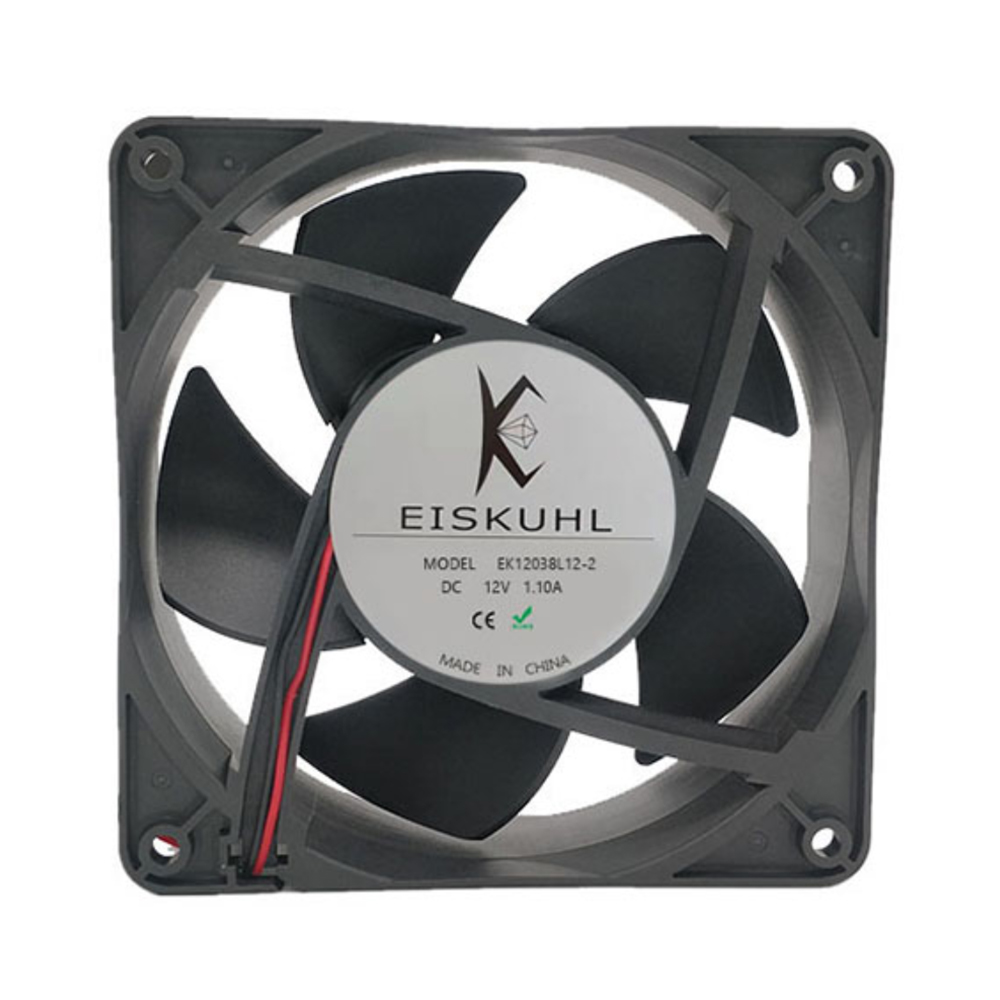

EK12038L12-2 120*120*38mm Brushless Cooling 12V DC Fan 3 Wire

EK12038L12-2

Model Size:120*120*38mm

Motor:DC Brushless Fan Motor

Bearing:Ball/Sleeve/Hydraulic

Weight: 360g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions120x120x38mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance50,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V12
Airflowin CFM149.90
Air Pressurein mmH2O13.70
Speedin RPM4000
Rated Currentin A1.10
Power Inputin W13.20
Sound Pressure Levelin dB(A)53.4
Nominal Valtage rangein VDC7~13.5V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
