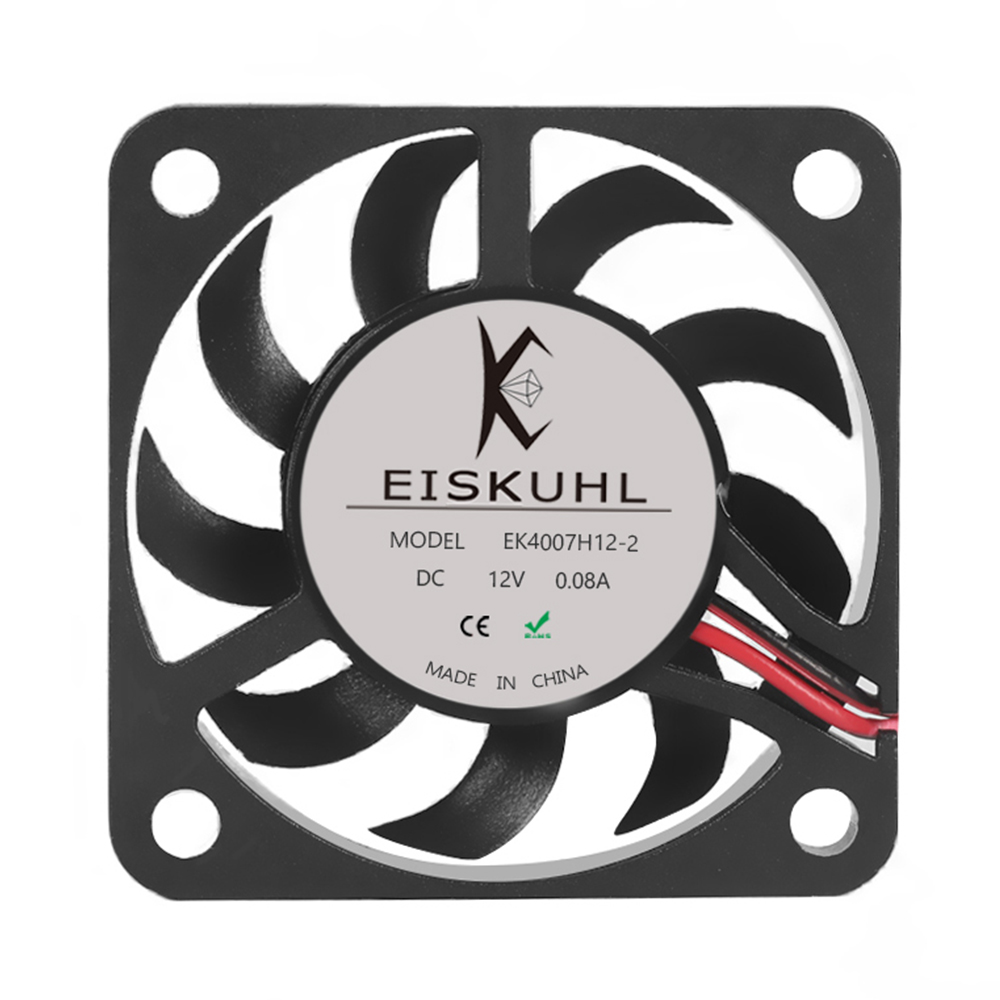

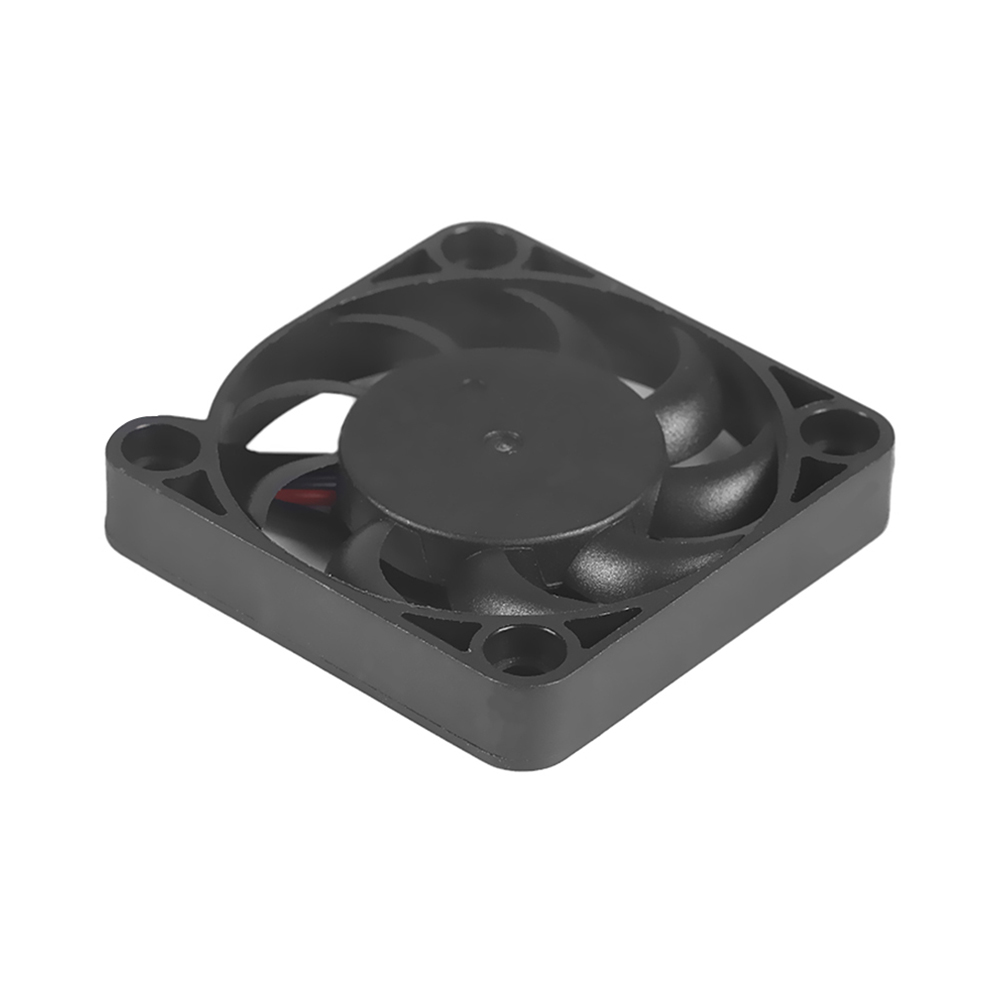

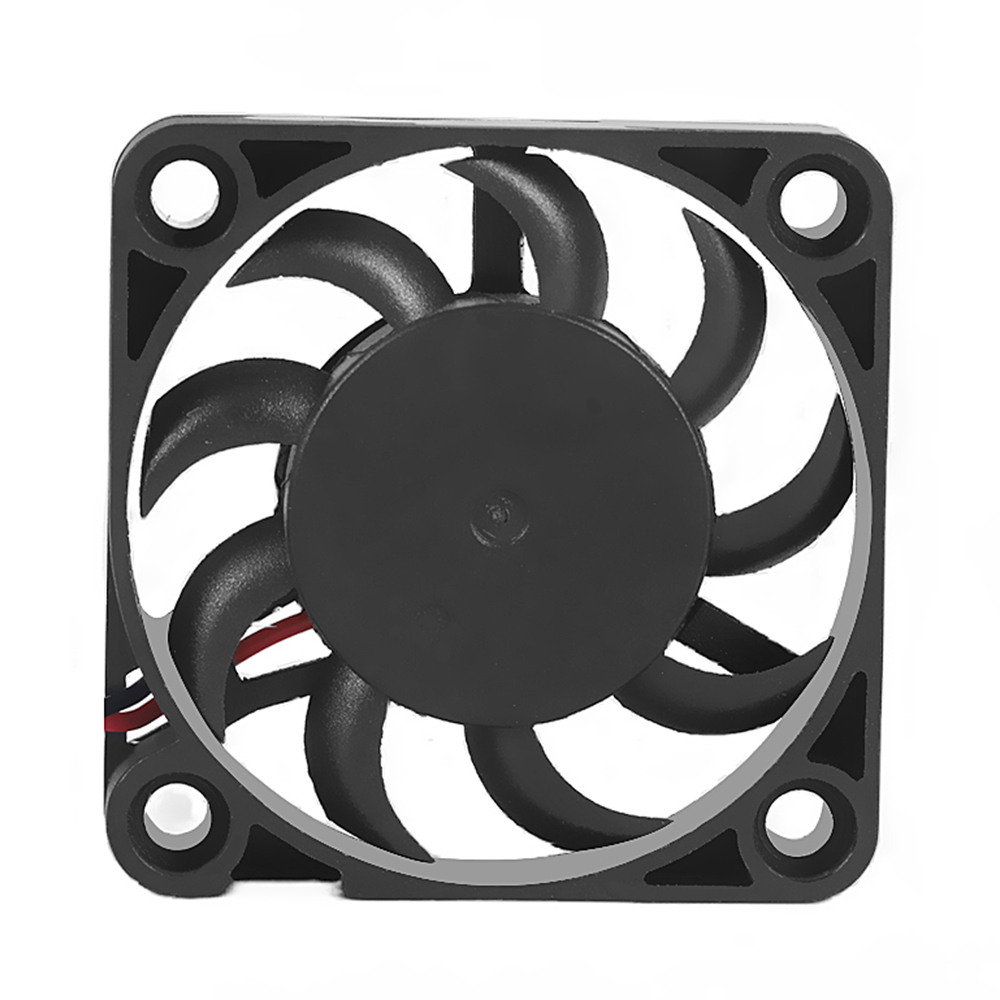

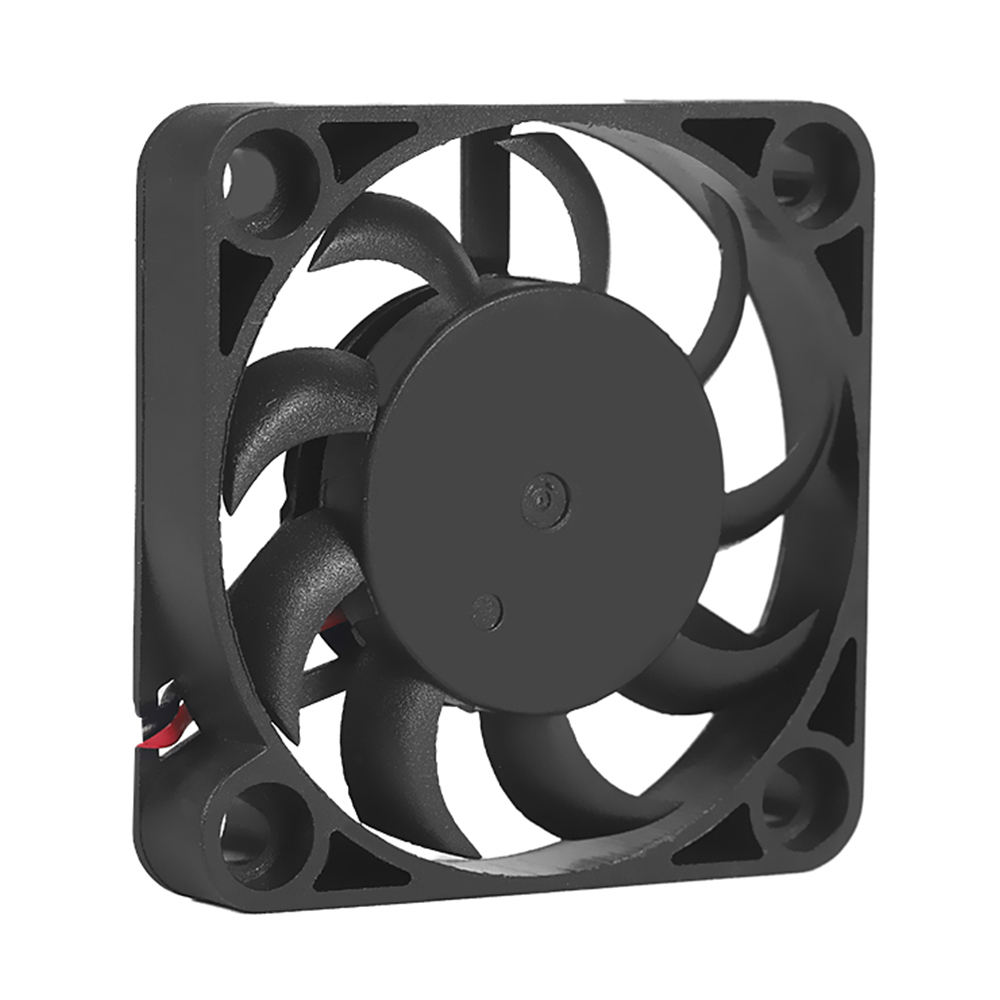

EK4007H12-2 40*40*07mm DC 12V 6000RPM Axial Brushless Cooling Fans Hydraulic Bearing

EK4007H12-2

Model Size:40*40*07mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Weight:8g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions40x40x07mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V12
Airflowin CFM4.60
Air Pressurein mmH2O1.65
Speedin RPM6000
Rated Currentin A0.080
Power Inputin W0.96
Sound Pressure Levelin dB(A)27.5
Nominal Valtage rangein VDC7~13.5V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
