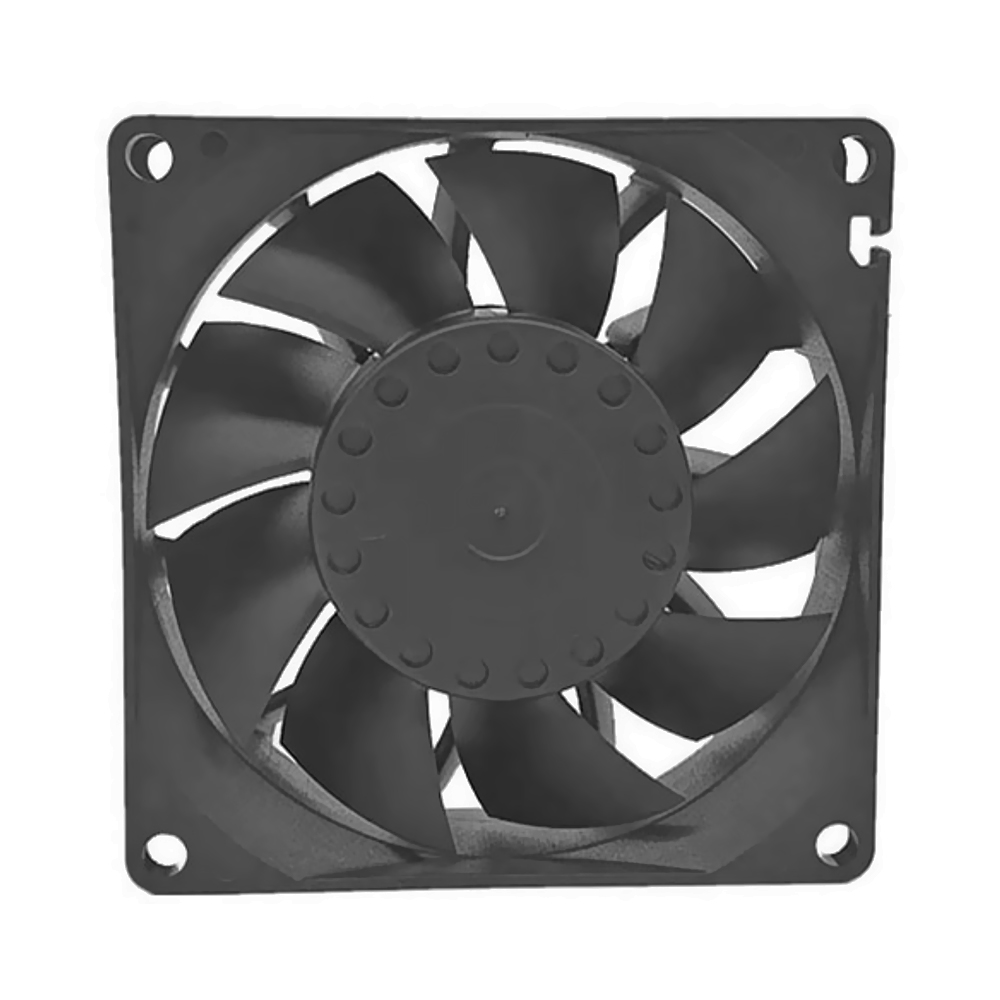

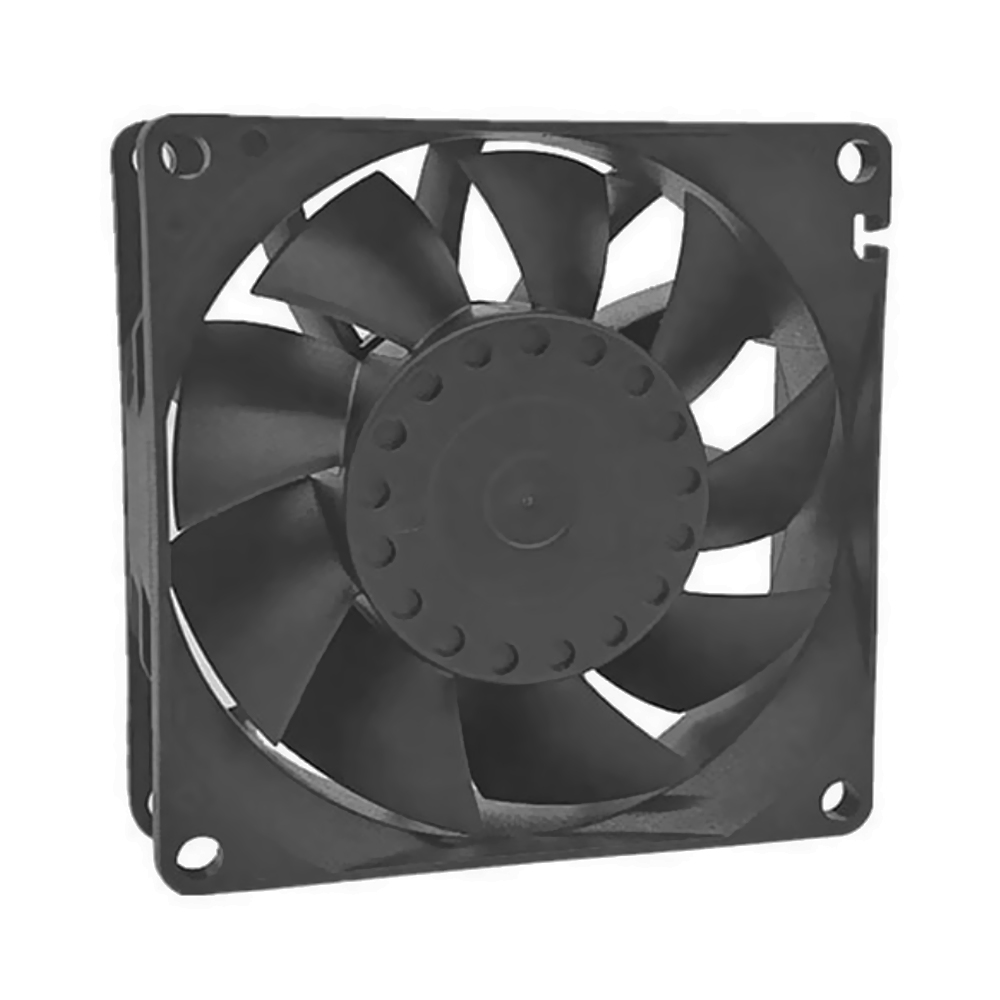

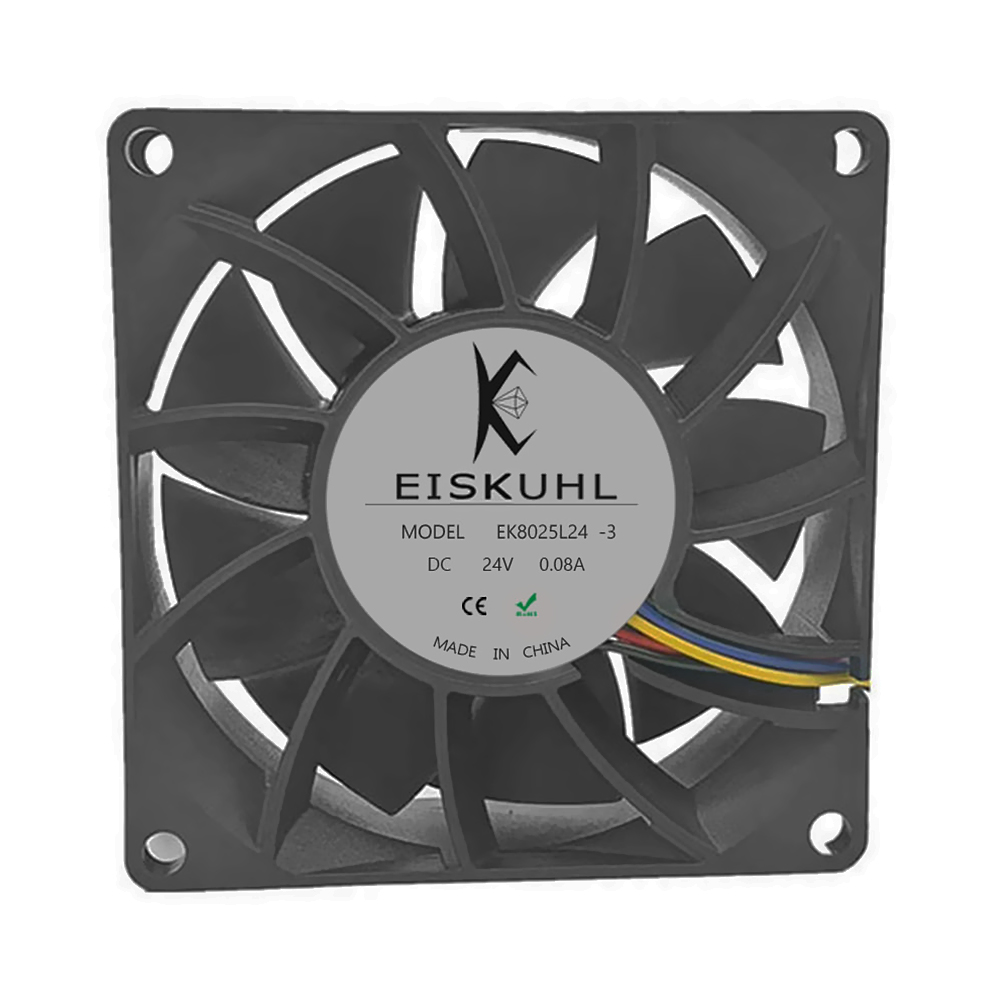

EK8025-3L24 80*80*25mm DC24V Aquarium Axial Cooling Fans

EK8025-3L24

Model Size: 80*80*25mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Weight: 95g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions80x80x25mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V24
Airflowin CFM37.17
Air Pressurein mmH2O5.47
Speedin RPM3500
Rated Currentin A0.08
Power Inputin W1.92
Sound Pressure Levelin dB(A)44.10
Nominal Valtage rangein VDC14~27.6V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
