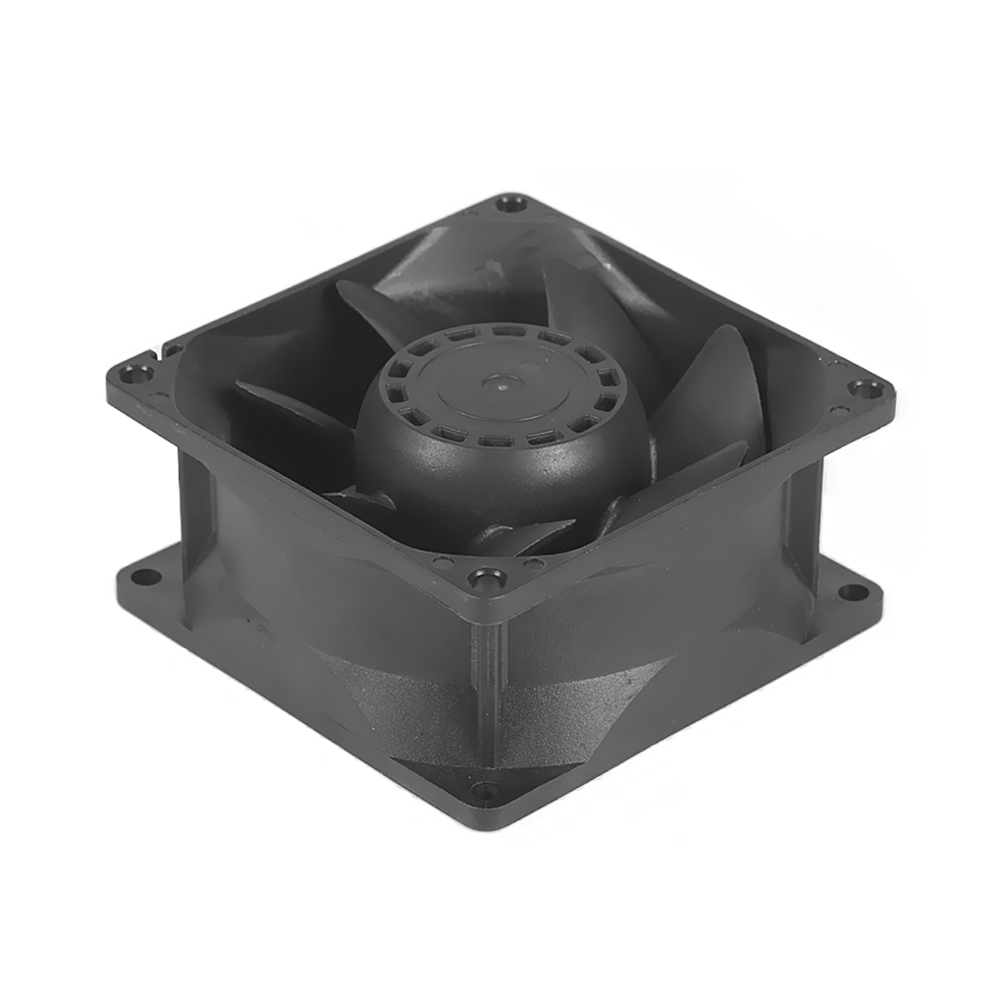

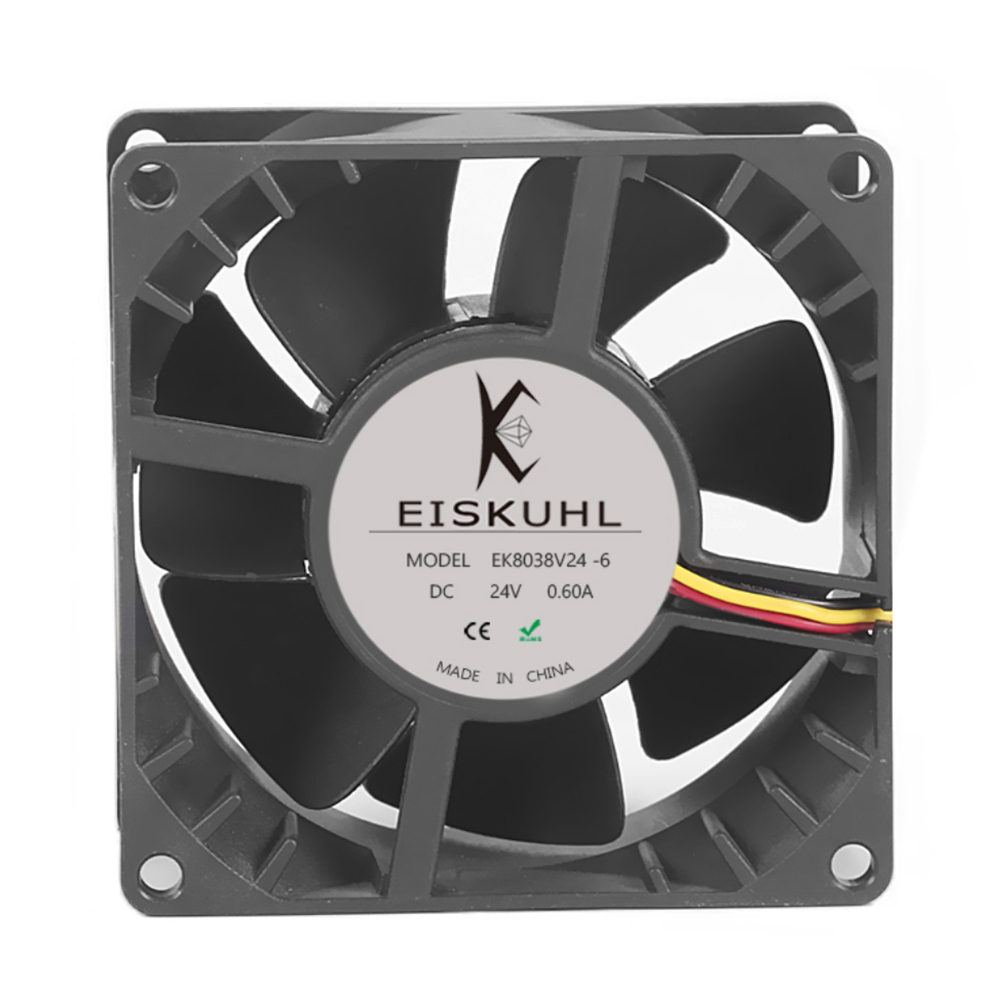

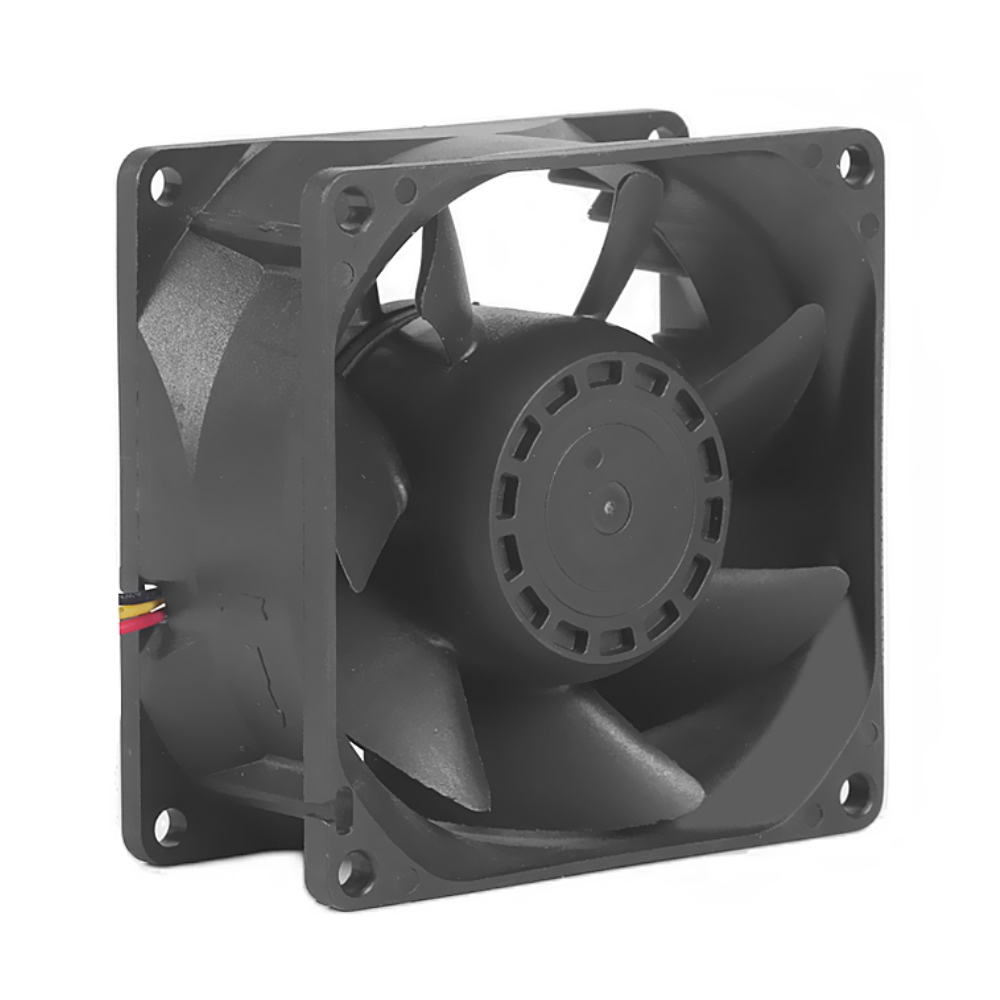

EK8038V24-6 DC24V Brushless Waterproof Axial Flow Fans Sleeve 8038

EK8038V24-6

Model Size: 80*80*38mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Weight:135g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions80x80x38mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V24
Airflowin CFM92.92
Air Pressurein mmH2O20.50
Speedin RPM6500
Rated Currentin A0.60
Power Inputin W14.40
Sound Pressure Levelin dB(A)51.9
Nominal Valtage rangein VDC14~27.6V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
