Model Size: 120*120*25mm
Motor: AC Brushless Fan Motor
Bearing: Ball/Sleeve
Weight:330g
Direction of rotation:Clockwise,viewed toward rotor

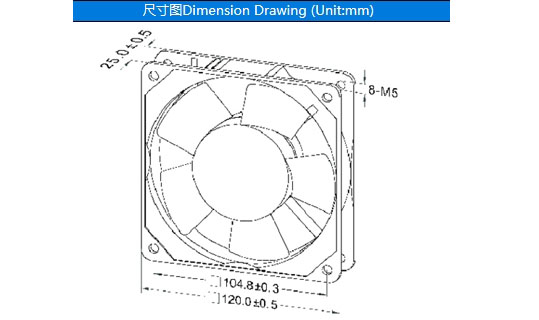

| Dimensions | 120x120x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 50,000 hrs by ball bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Wire | -/+/FG/PWM wire- UL3302 AWG #32 |
| Type of Voltage | AC | |
| Nominal Valtage | in V | 115 |
| Freq | in Hz | 50/60 |
| Rated Current | in A | 0.19/0.18 |
| Power Input | in W | 19/18 |
| Speed | in RPM | 2200/2400 |
| Airflow | in CFM | 64/76 |
| Air Pressure | in m3/Min | 1.8/2.1 |
| Max.static Pressuire | in (Pa) | 45/52 |
| Noise | in dB(A) | 38/40 |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~75°C (Non-condensing) |
| Operating Humidity | 5%~90%RH |
| Storage Humidity | 5%~95%RH |
