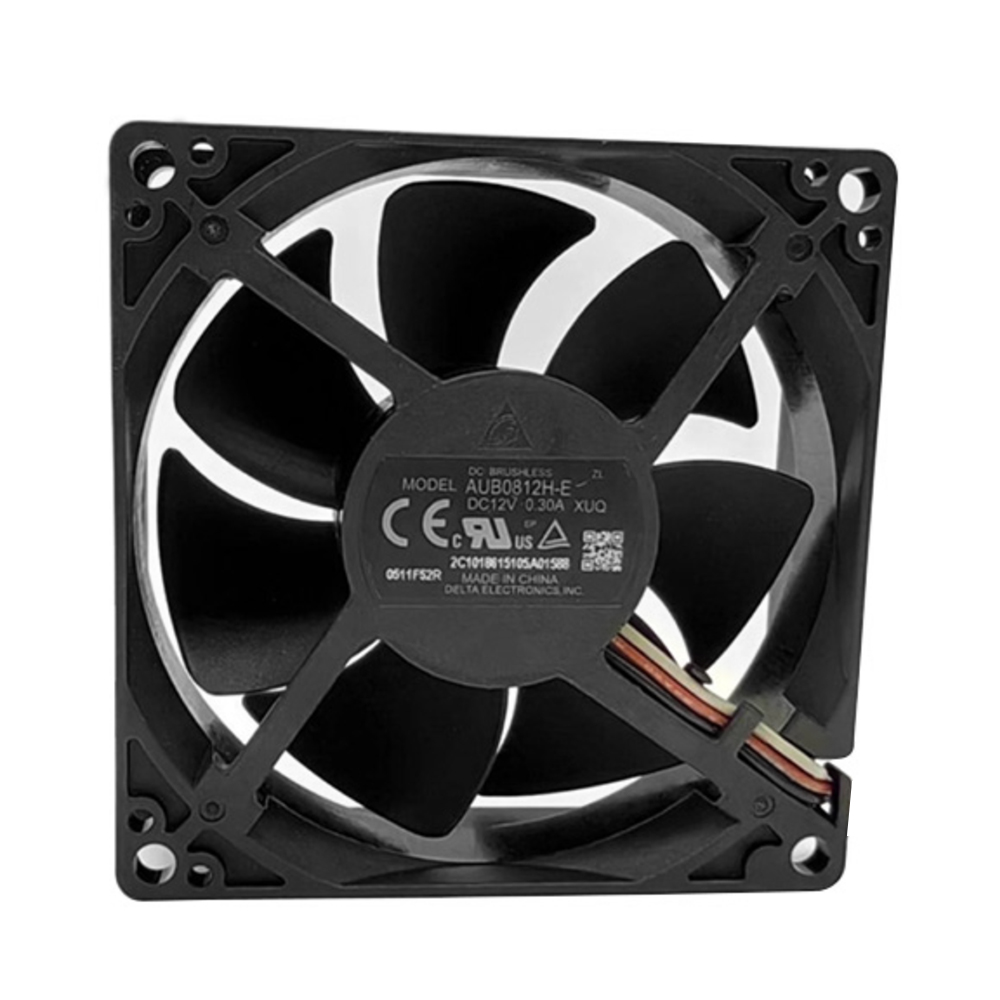

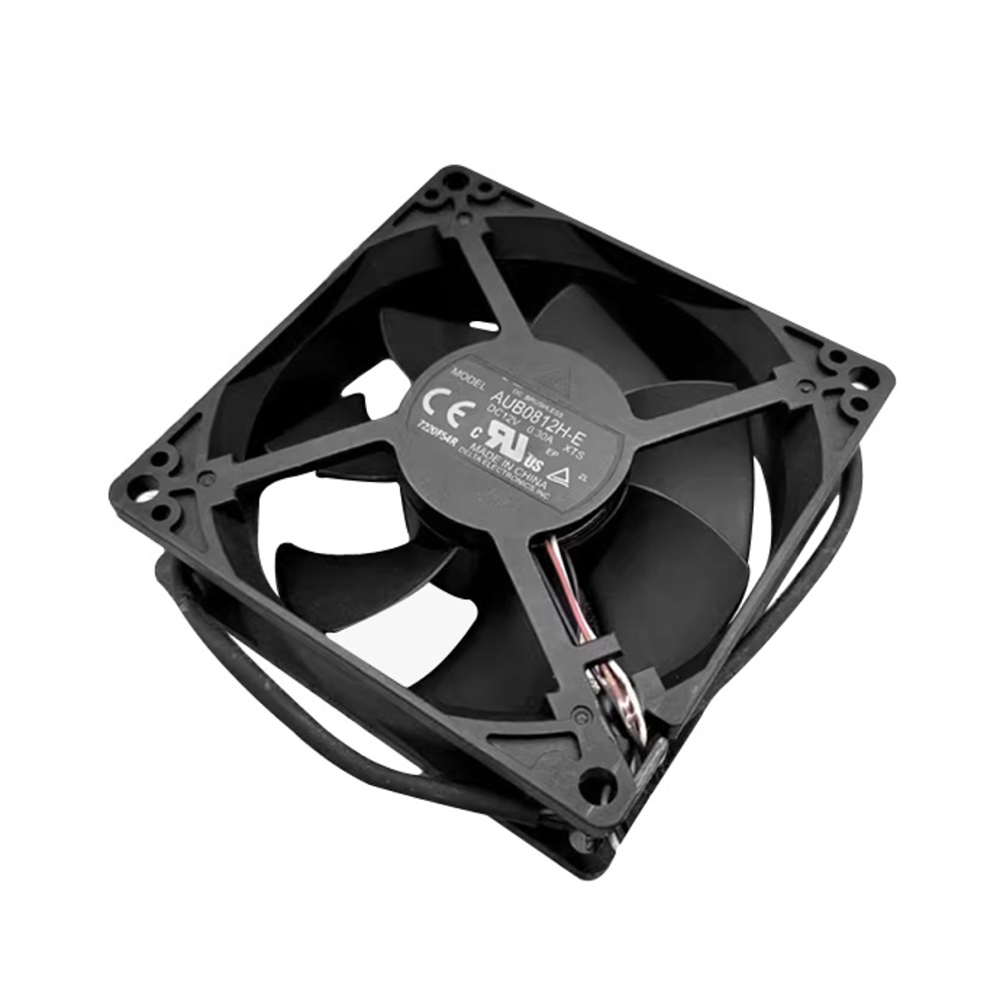

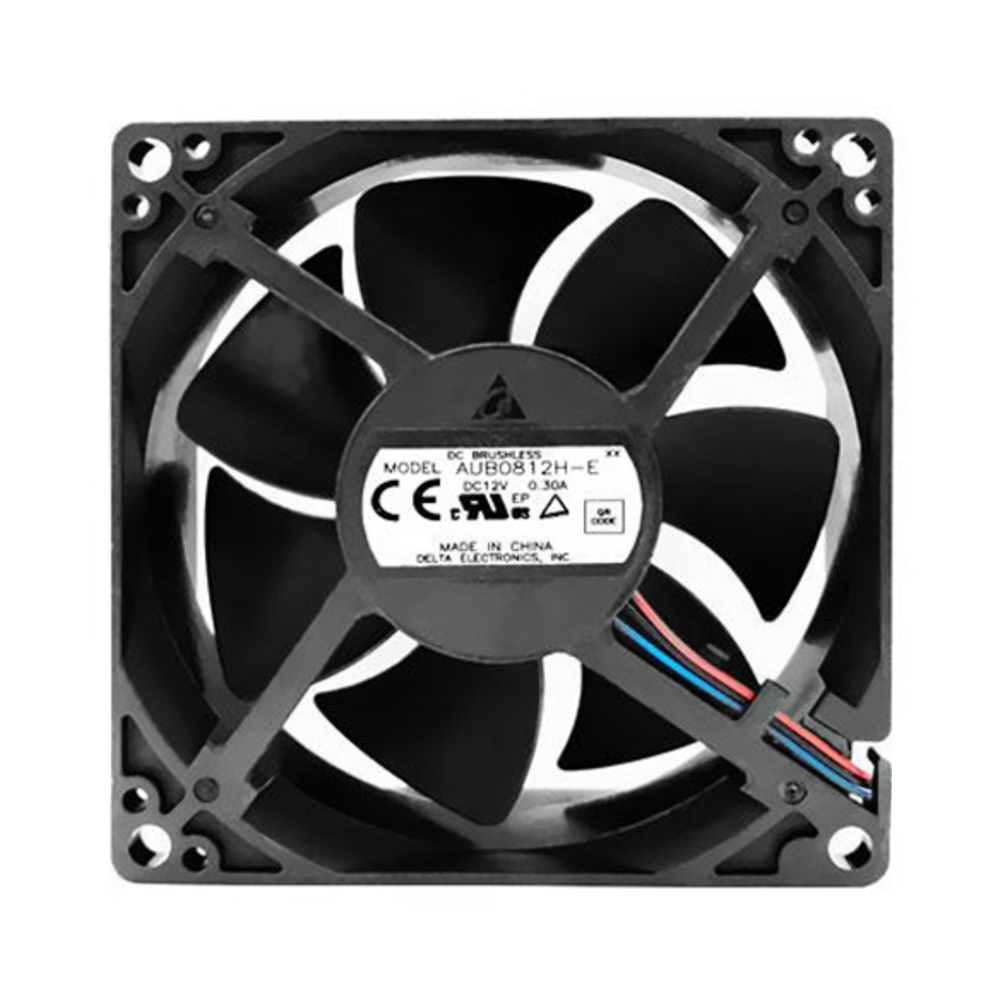

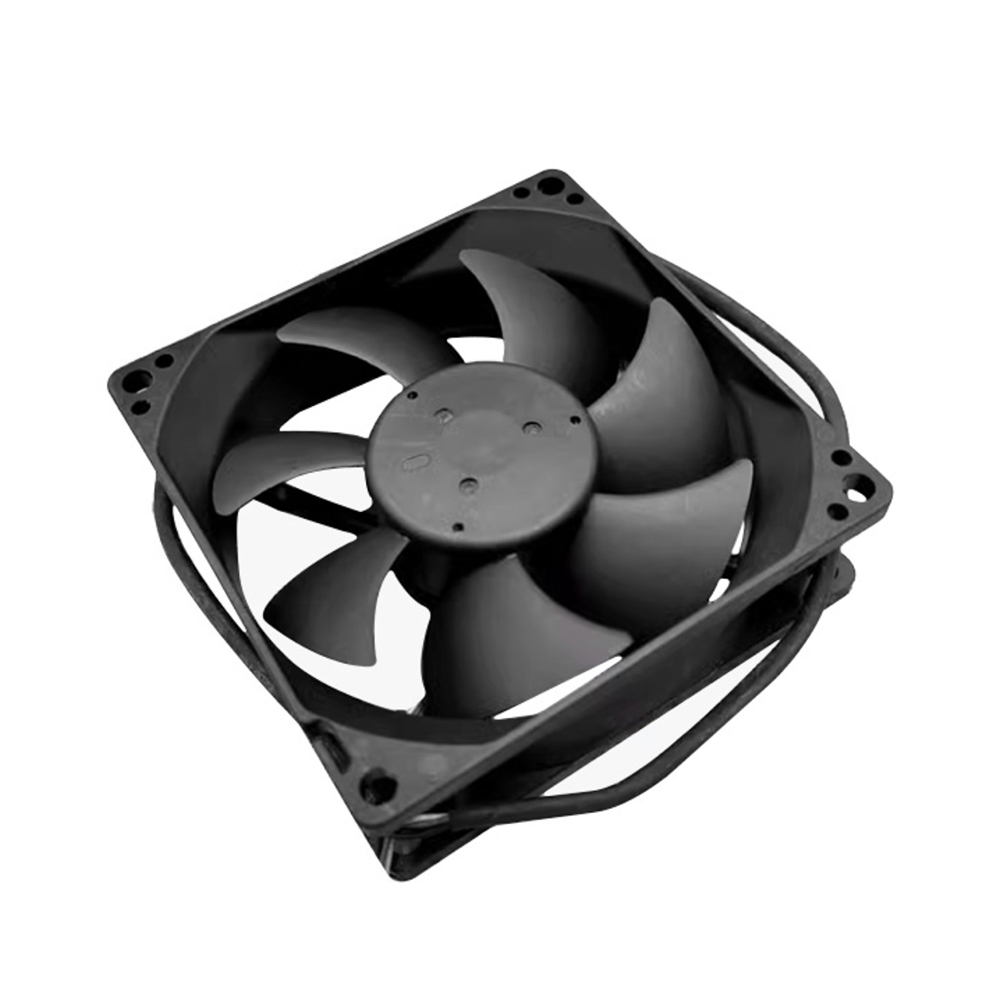

Model Size:80*80*25mm
Motor:DC Brushless Fan Motor
Bearing:Ball bearing
Direction of rotation:Clockwise view from name plated side
Over current shut down:The currect will shut down when locking rotor

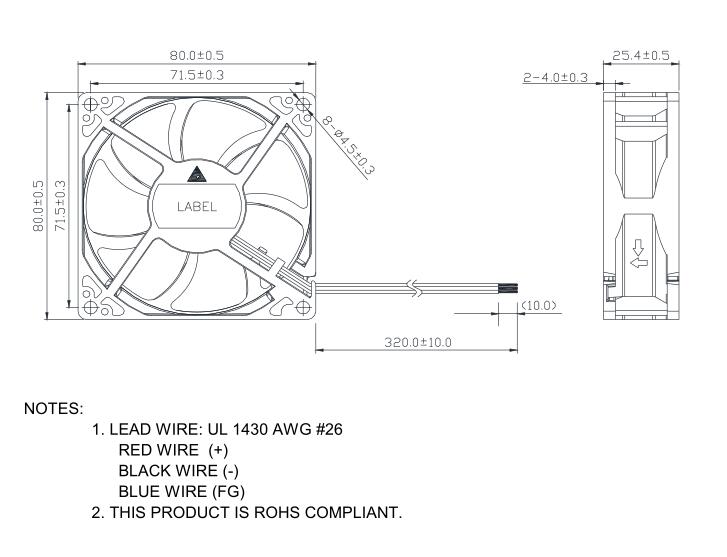

| Dimensions | 80x80x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 70,000 hrs by ball bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Wire | UL1007 #24 |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 12 |

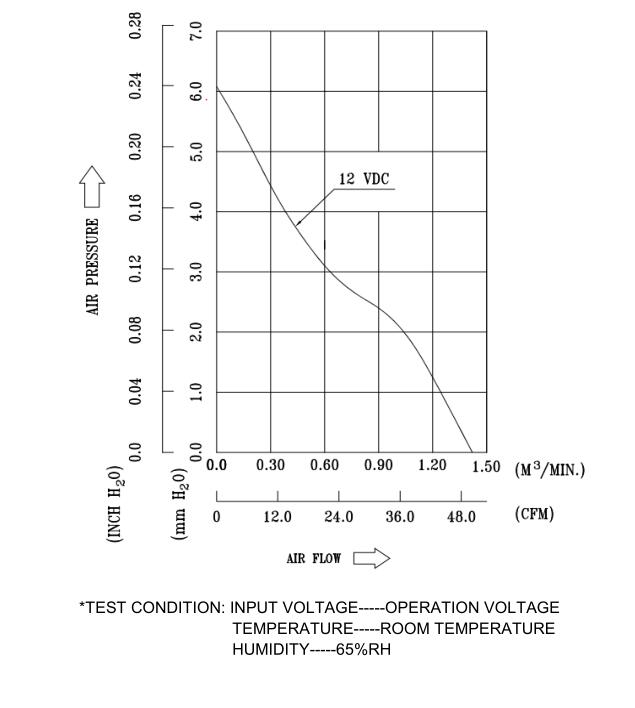

| Airflow | in CFM | 50.15 |
| Air Pressure | in mmH2O | 6.080 |
| Speed | in RPM | 3900 |
| Rated Current | in A | 0.23 |
| Power Input | in W | 2.76 |
| Sound Pressure Level | in dB(A) | 37.5 |
| Nominal Valtage range | in V | DC5.0-13.2V |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~75°C (Non-condensing) |
| Operating Humidity | 5%~90%RH |
| Storage Humidity | 5%~95%RH |
