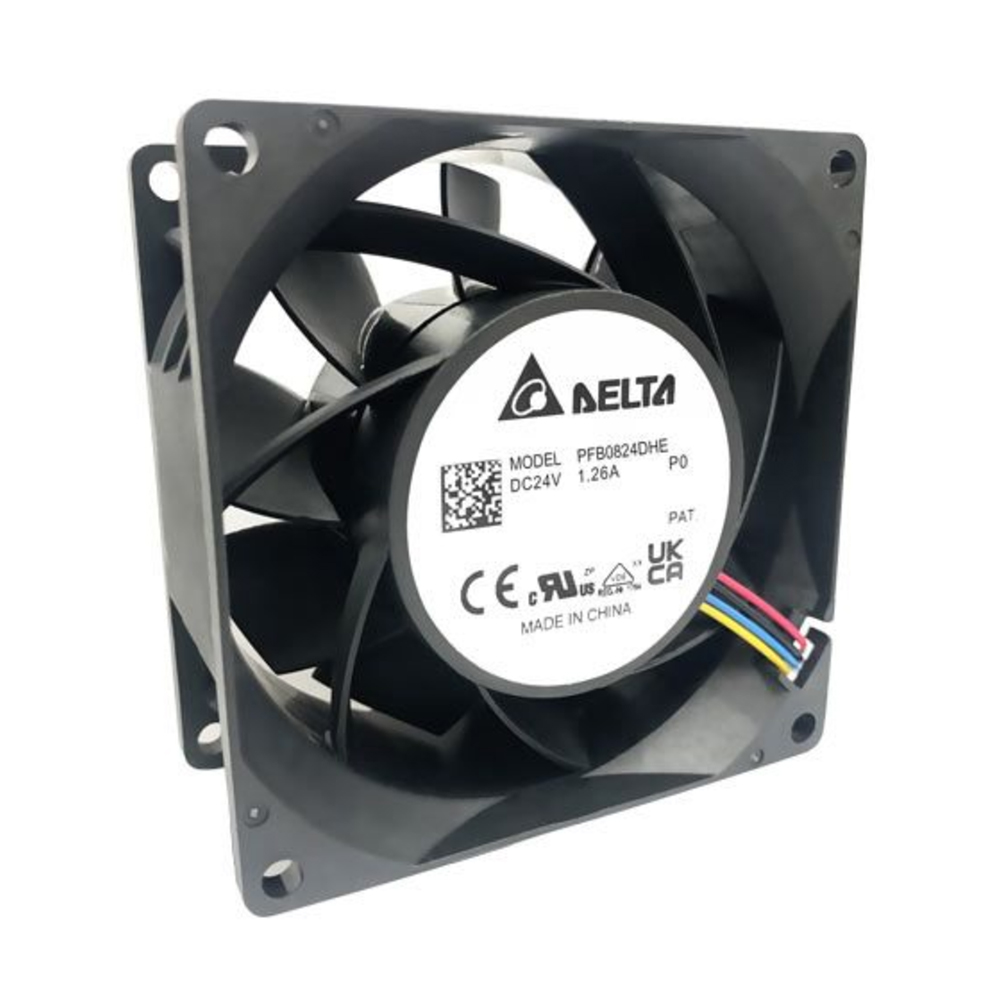

PFB0824DHEP0 80*80*38mm DC Delta Fans

PFB0824DHEP0

Model Size: 80*80*38mm

Motor:DC Brushless Fan Motor

Bearing:Ball bearing

Direction of rotation:Clockwise view from name plated side

Over current shut down:The currect will shut down when locking rotor

Share this:

Technical Description

Dimensions80x80x38mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance70,000 hrs by ball bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Wire

+/-/FG/PWM wire- UL1061 #24

Nominal Data

Type of Voltage
DC
Nominal Valtagein V24
Airflowin CFM132.6
Air Pressurein mmH2O51.57
Speedin RPM9000
Rated Currentin A1.26
Power Inputin W30.24
Sound Pressure Levelin dB(A)65
Nominal Valtage rangein VDC14.0-26.4V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~75°C (Non-condensing)
Operating Humidity5%~90%RH
Storage Humidity5%~95%RH

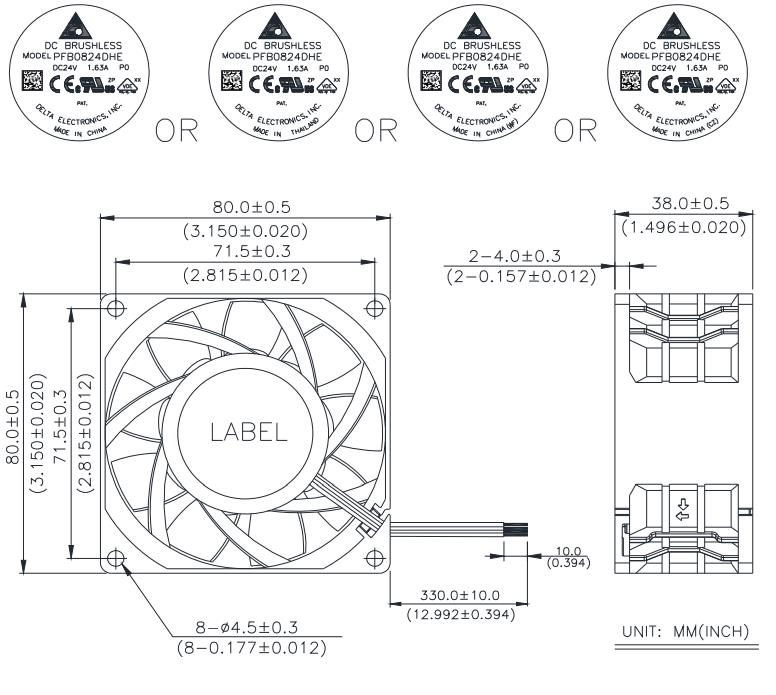

2D Dimension Drawing

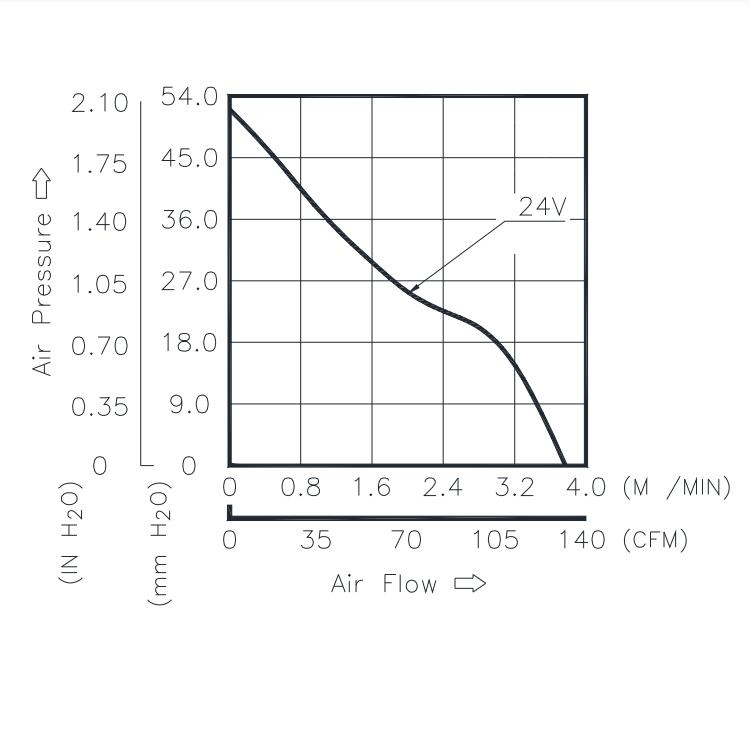

PQ Curve
