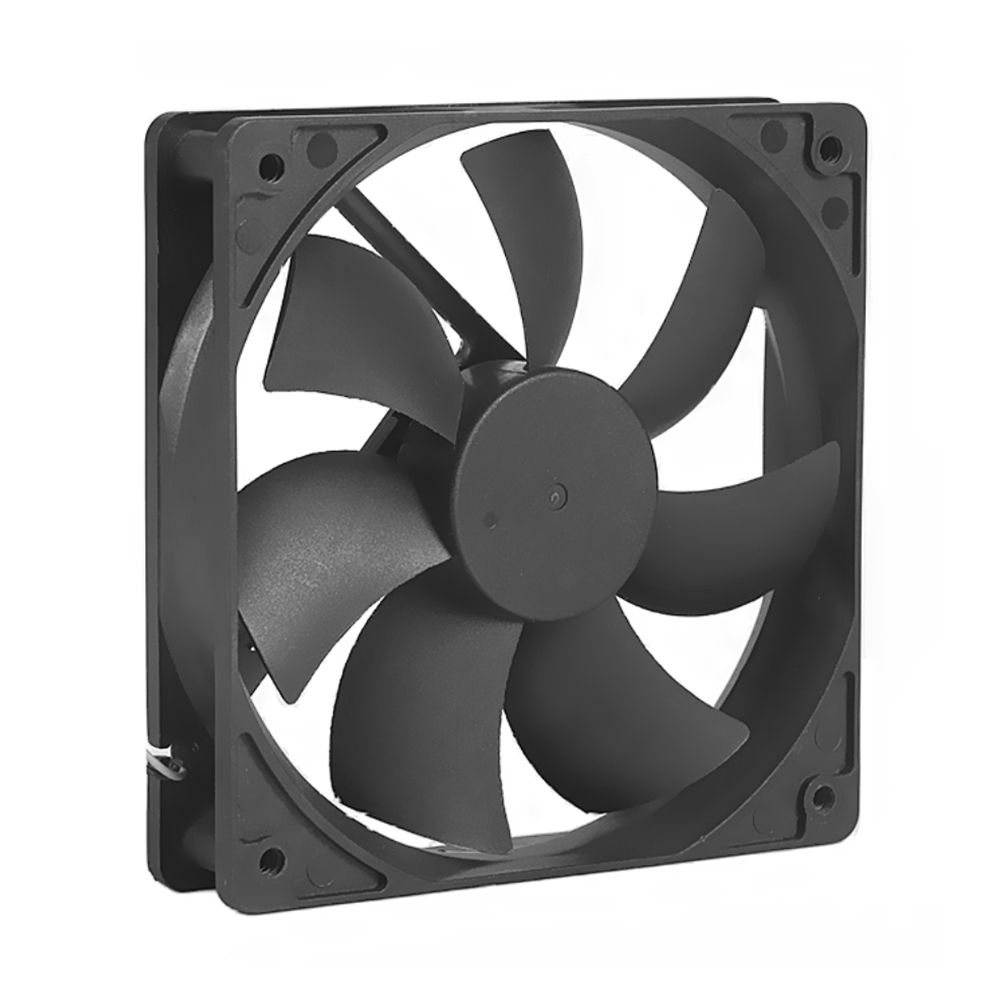

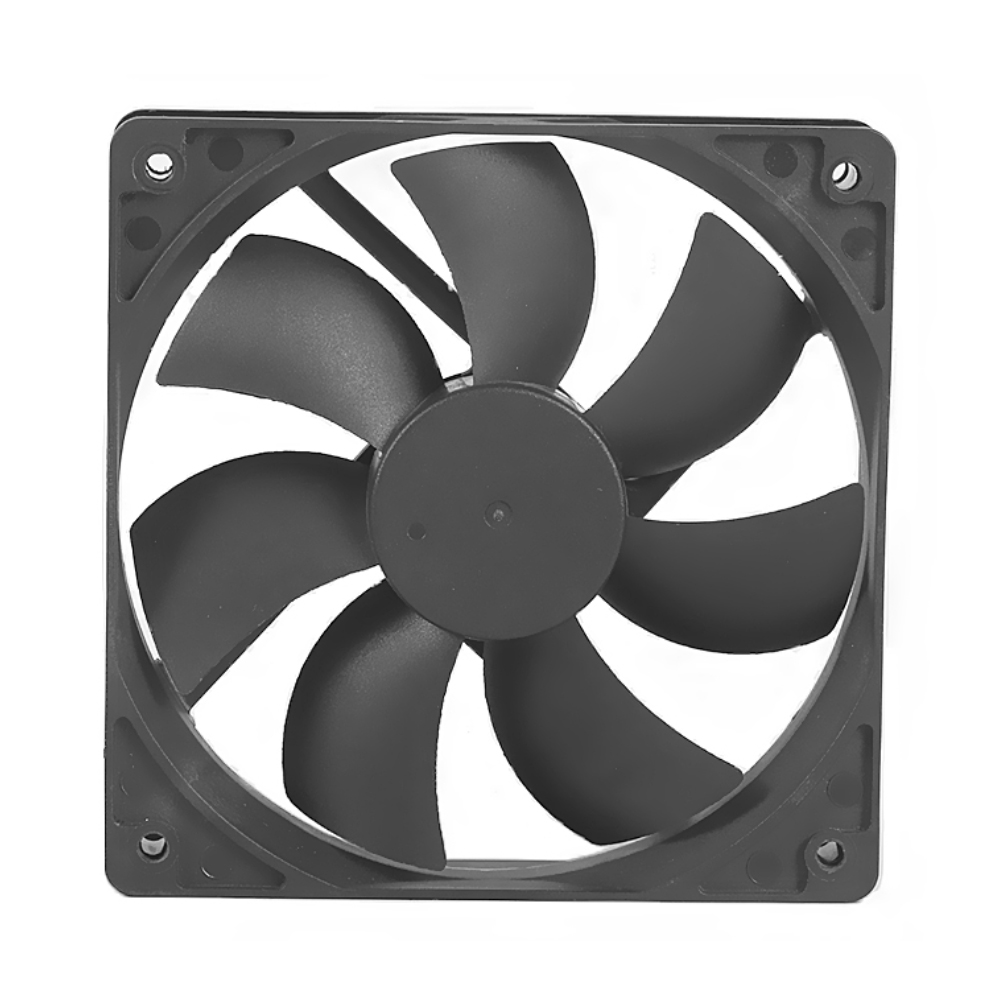

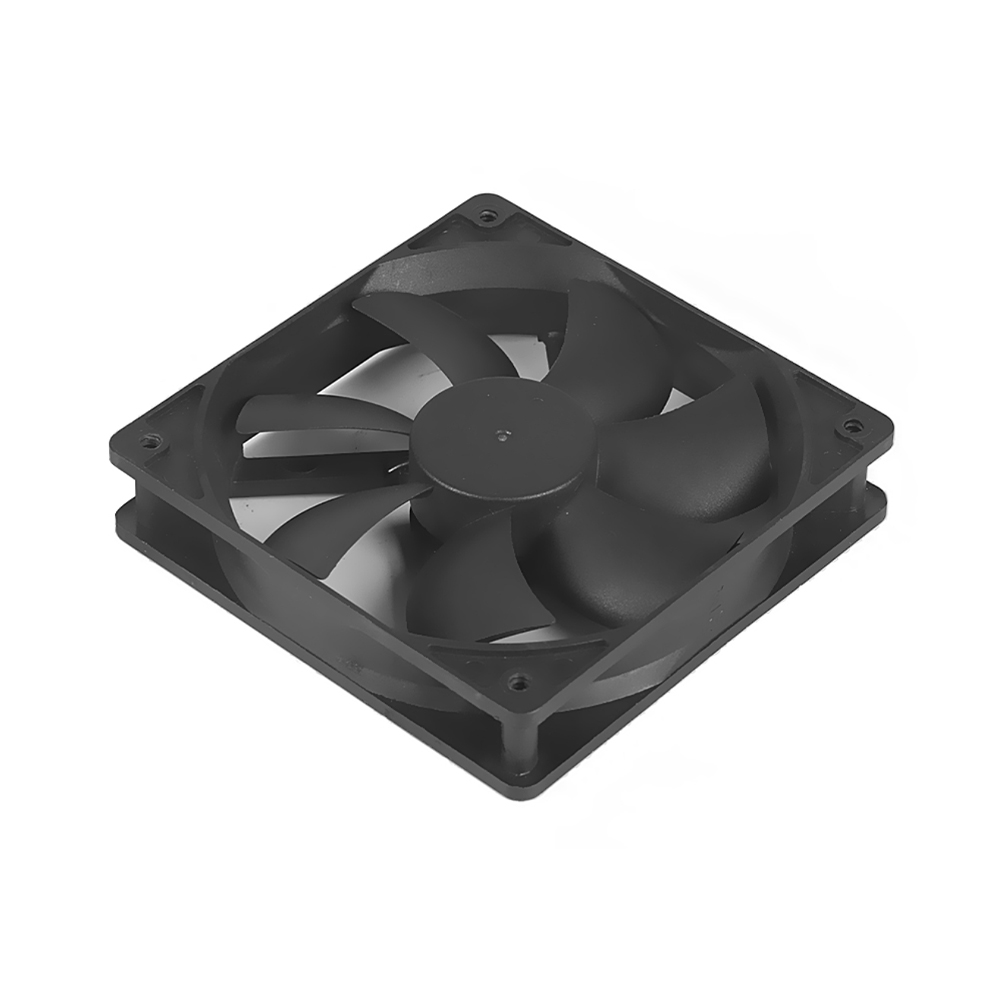

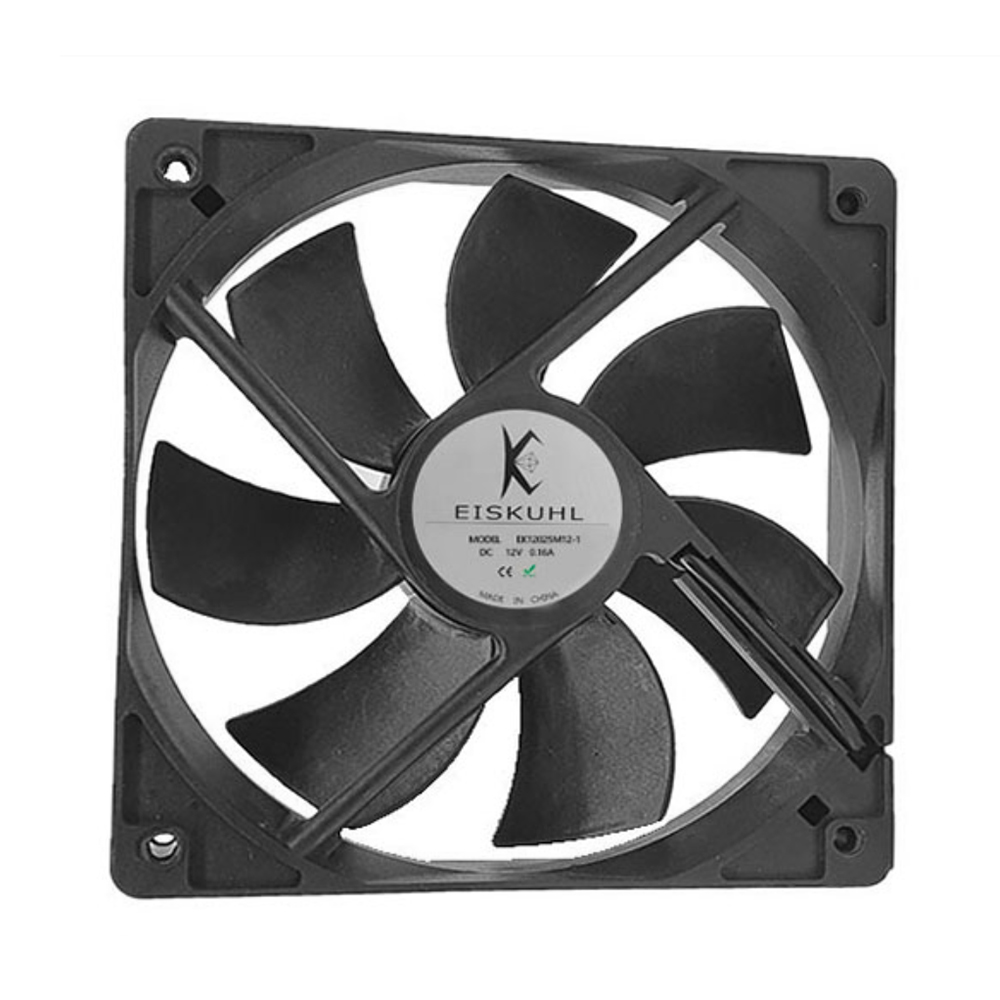

EK12025V12 120*120*25mm Cooling DC Powered Fan

EK12025V12

Model Size:120*120*25mm

Motor:DC Brushless Fan Motor

Bearing:Ball/Sleeve/Hydraulic

Weight: 140g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions120x120x25mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance50,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V12
Airflowin CFM89.28
Air Pressurein mmH2O3.11
Speedin RPM2500
Rated Currentin A0.32
Power Inputin W3.84
Sound Pressure Levelin dB(A)40.4
Nominal Valtage rangein VDC7~13.5V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
