Model Size: 120*120*25mm
Motor: DC Brushless Fan Motor
Bearing: Ball
Weight:275g
Direction of rotation:Clockwise,viewed toward rotor
Package Size: 150*150*50mm
Outer Box Size:55*48*33cm/60pcs/17.5kg

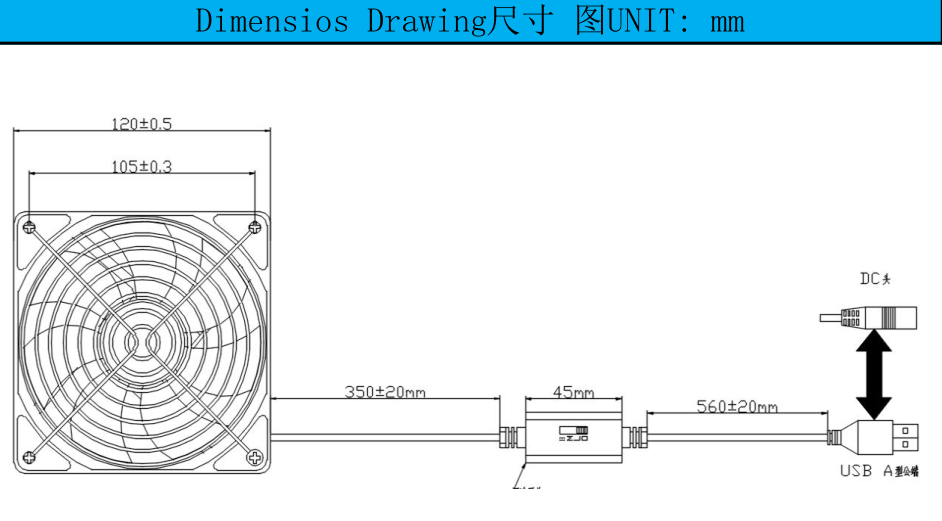

| Dimensions | 120x120x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Sleeve bearing system |
| Life expectance | 30,000 hrs by sleeve bearing system |
| Cable | UL1571AWG#28 (+) Red, (-) Black, stripped and tin-plated |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Optional wire | "Sensor"yellow/"PWM"blue |
| Type of Voltage | DC | |||
| Nominal Valtage | in V | 12V | ||

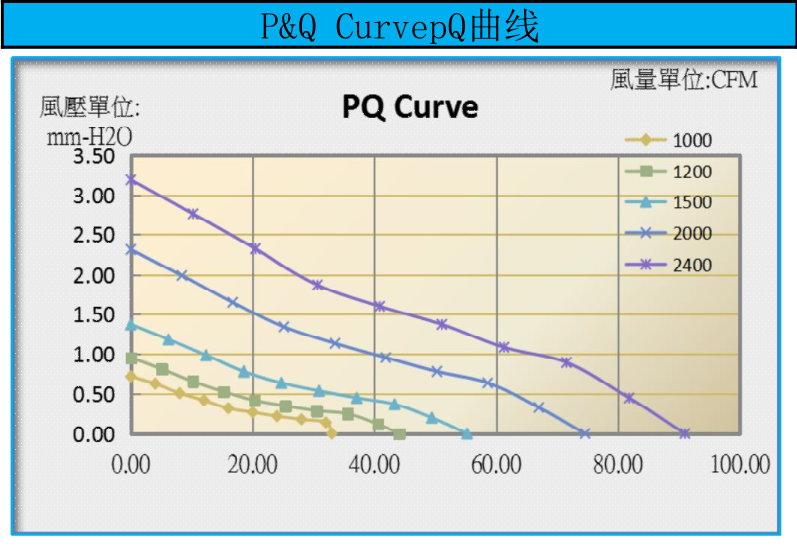

| Airflow | in CFM | 55.21 | 74.58 | 90.98 |
| Air Pressure | in mmH2O | 1.37 | 2.31 | 3.19 |
| Speed | in RPM | 1500 | 2000 | 2400 |
| Rated Current | in A | 0.3 | ||
| Power Input | in W | 3.6 | ||
| Nominal Valtage range | in V | DC7~13.5V | ||
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~80°C (Non-condensing) |
| Operating Humidity | 5%~95%RH |
| Storage Humidity | 5%~95%RH |
