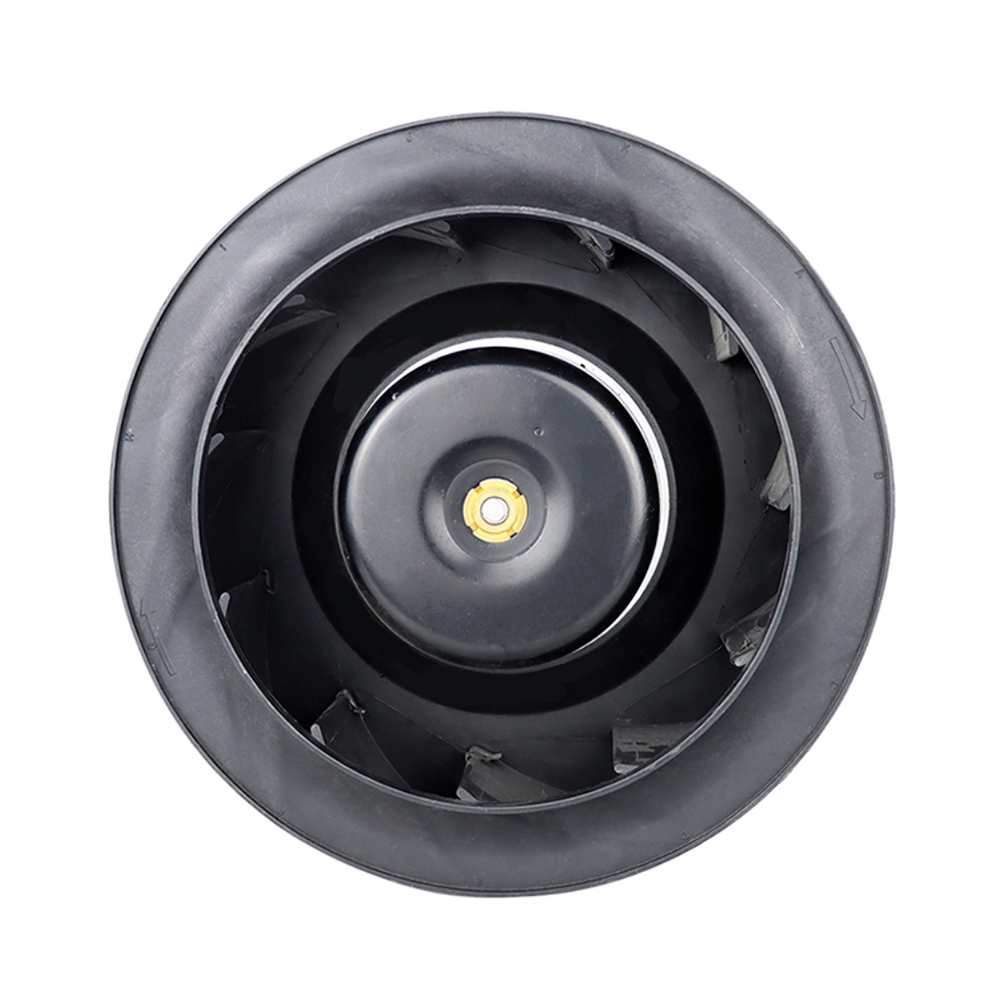

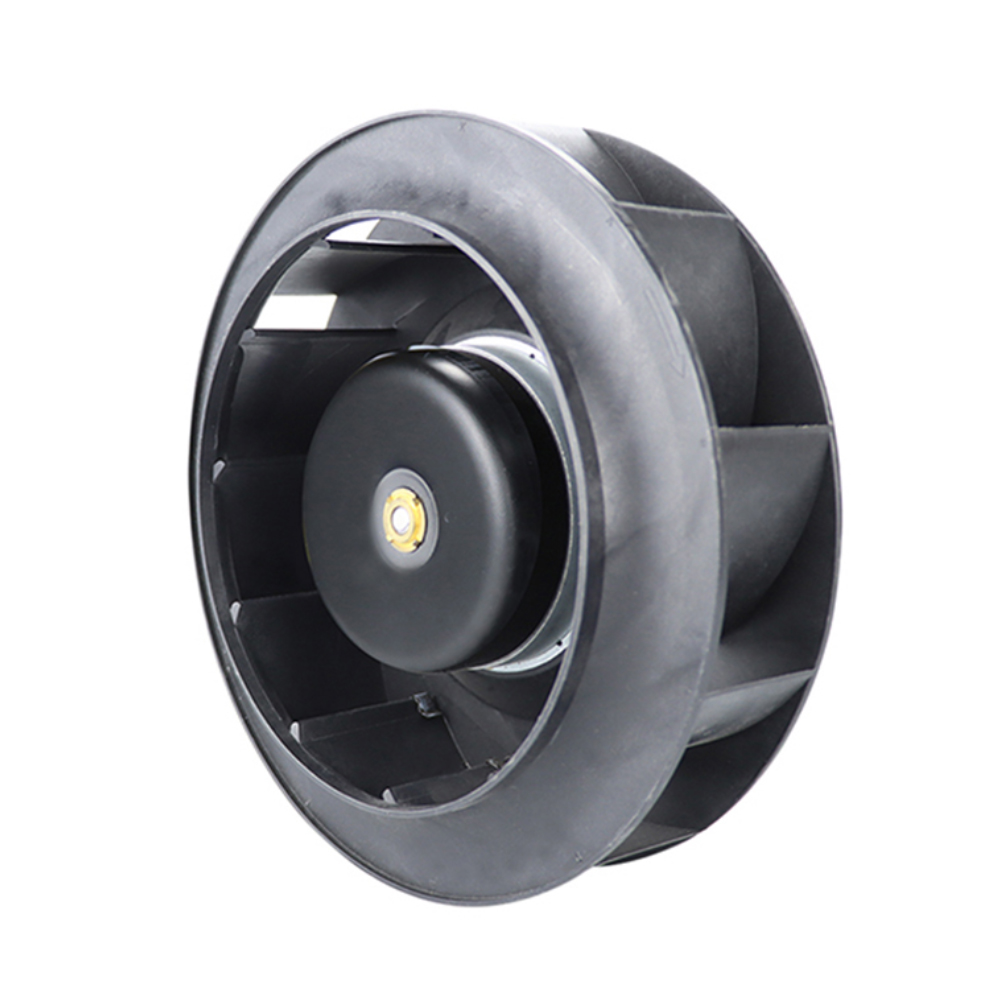

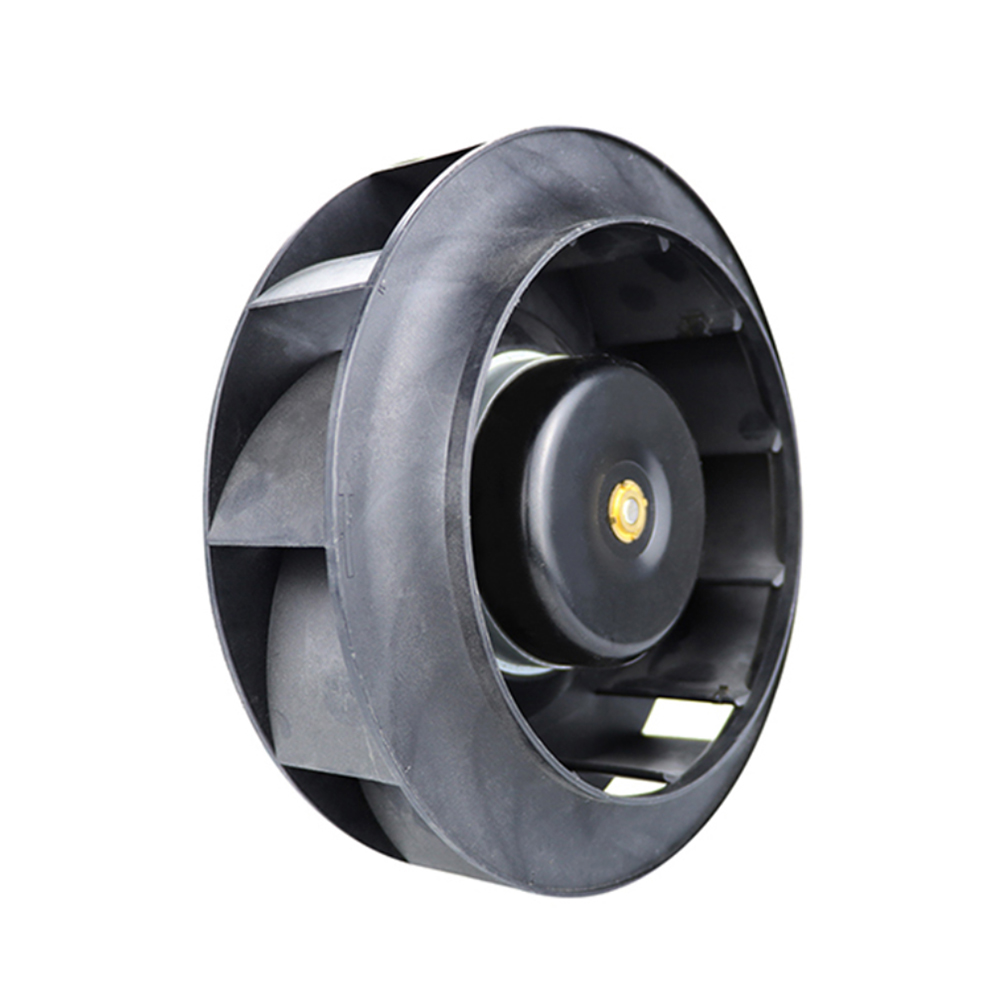

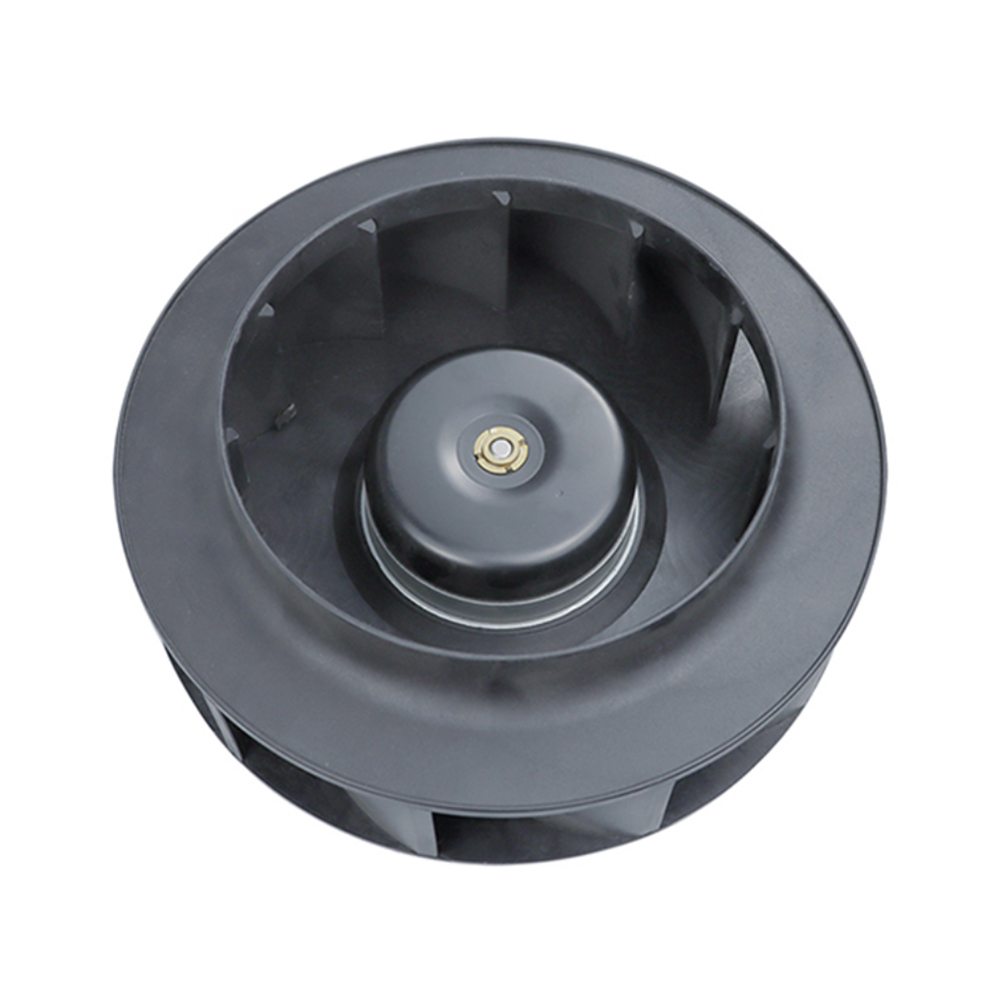

Model Size: 220mm
Motor: DC Centrifugal Fans Motor
Bearing: Ball
Weight:1450g
Direction of rotation:Clockwise,viewed toward rotor
| Dimensions | 220mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 70,000 hrs by ball bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Wire | Lead wire AWG 26 UL 1007 |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 24 |
| Airflow | in CFM | 653.9 |
| Air Pressure | in mmH2O | 60.5 |
| Speed | in RPM | 3200 |
| Rated Current | in A | 6.2 |
| Power Input | in W | 148.8 |
| Noise | in dB(A) | 72.0 |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~75°C (Non-condensing) |
| Operating Humidity | 5%~90%RH |
| Storage Humidity | 5%~95%RH |
