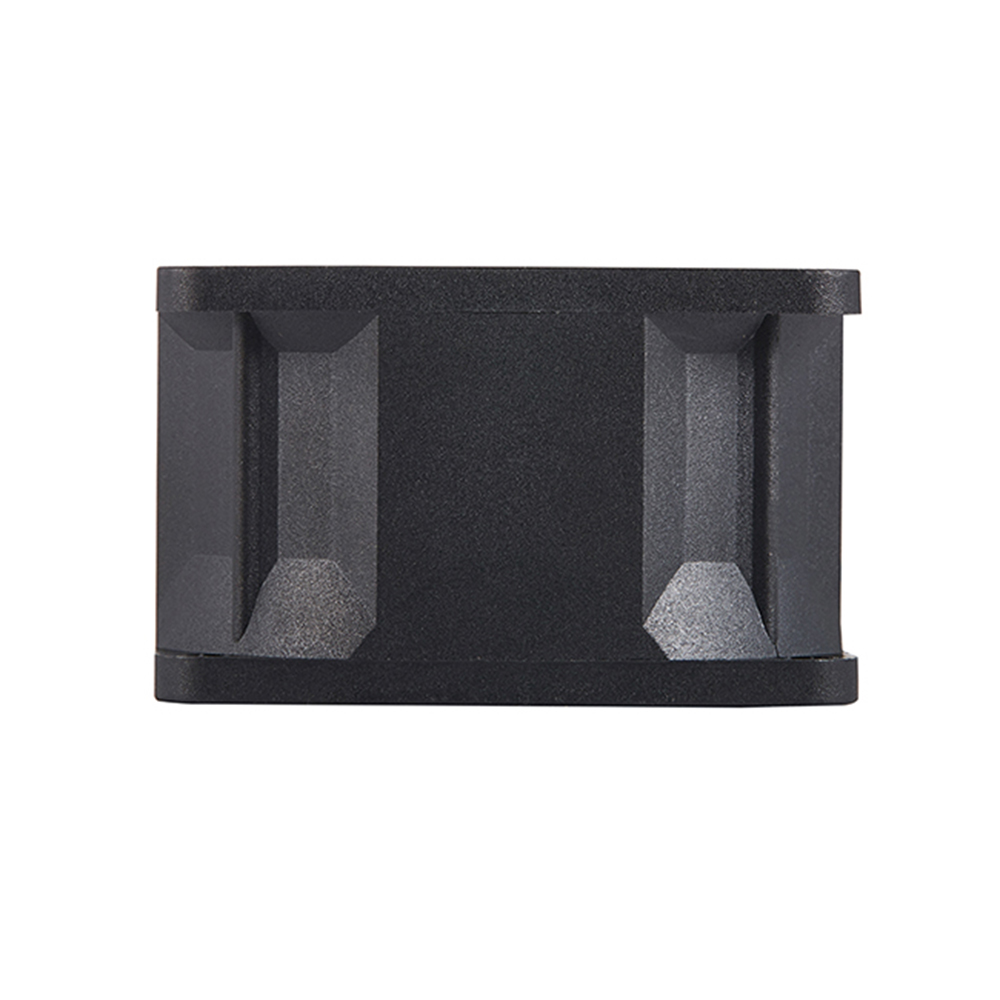

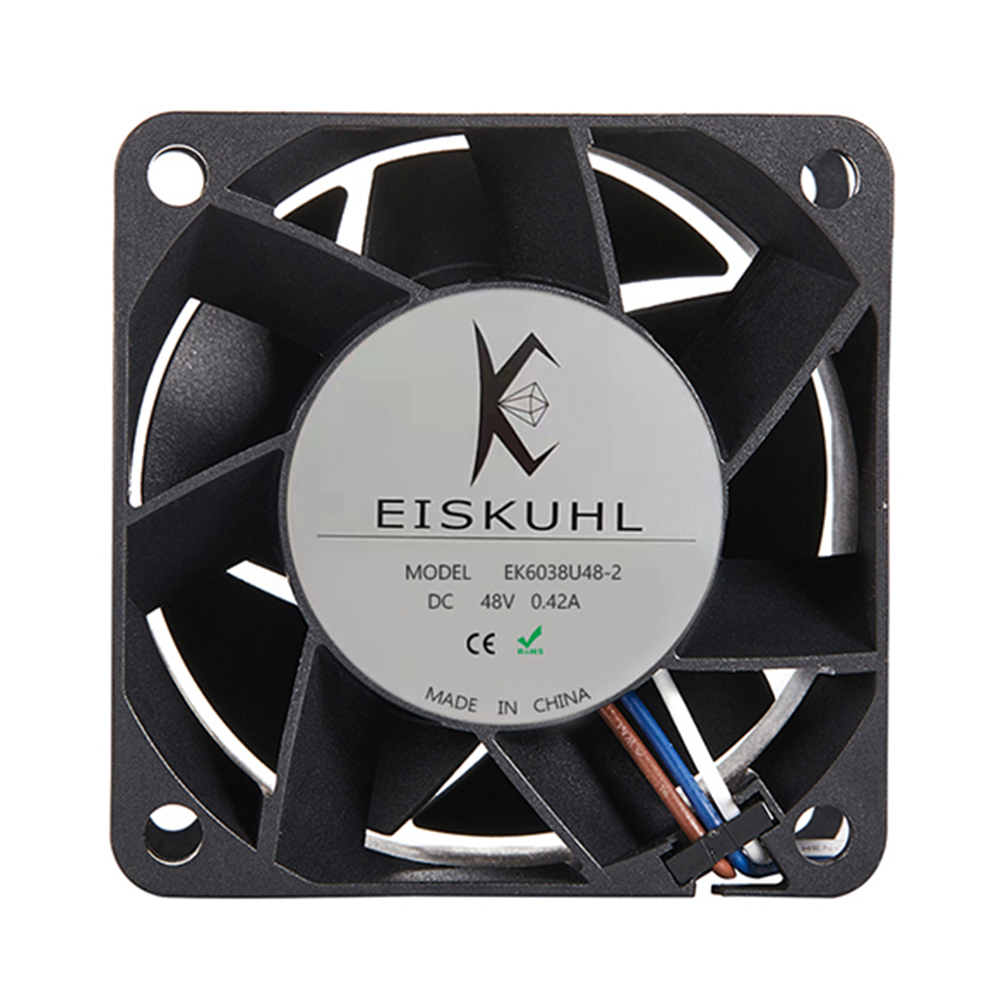

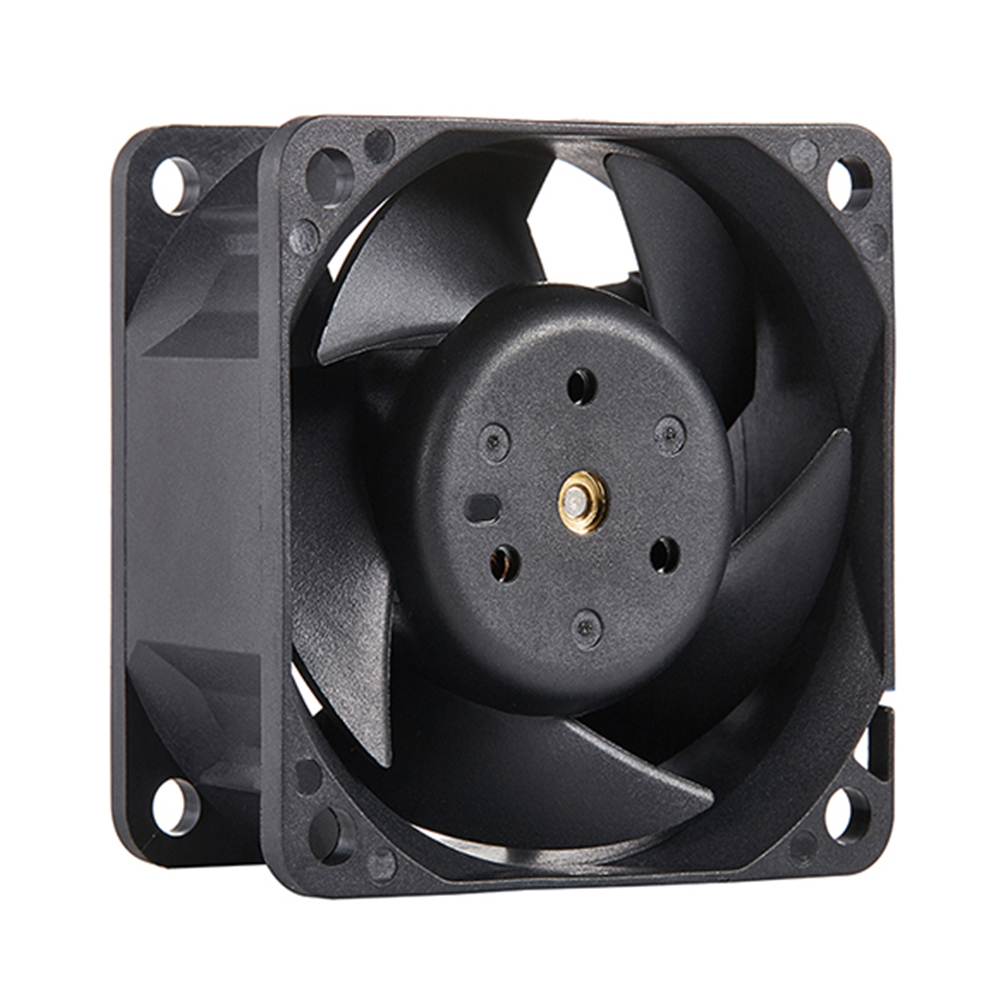

EK6038U48-2 60*60*38mm DC Cooling Industrial Axial Fans

EK6038U48-2

Model Size: 60*60*38mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Weight:105g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions60x60x38mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V48
Airflowin CFM66.16
Air Pressurein mmH2O82.92
Speedin RPM17000
Rated Currentin A0.42
Power Inputin W20.6
Sound Pressure Levelin dB(A)65.3
Nominal Valtage rangein VDC36~54V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
