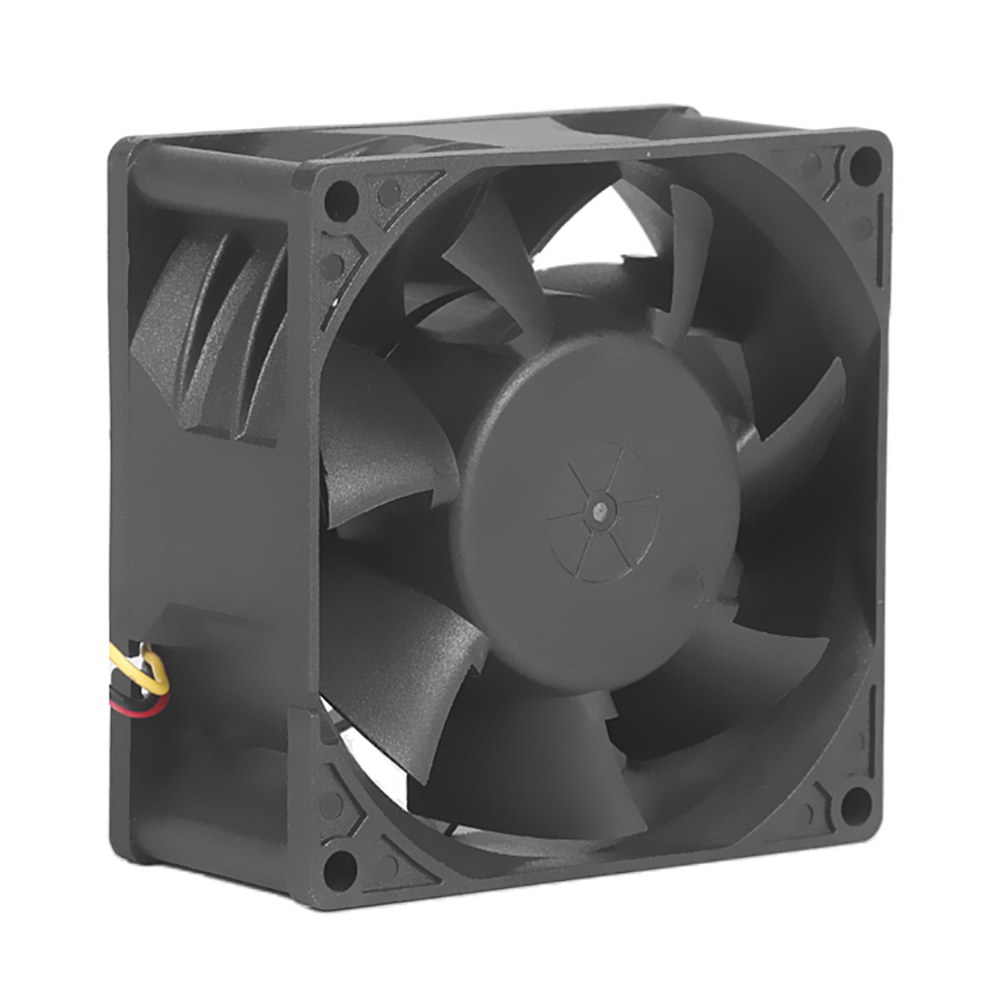

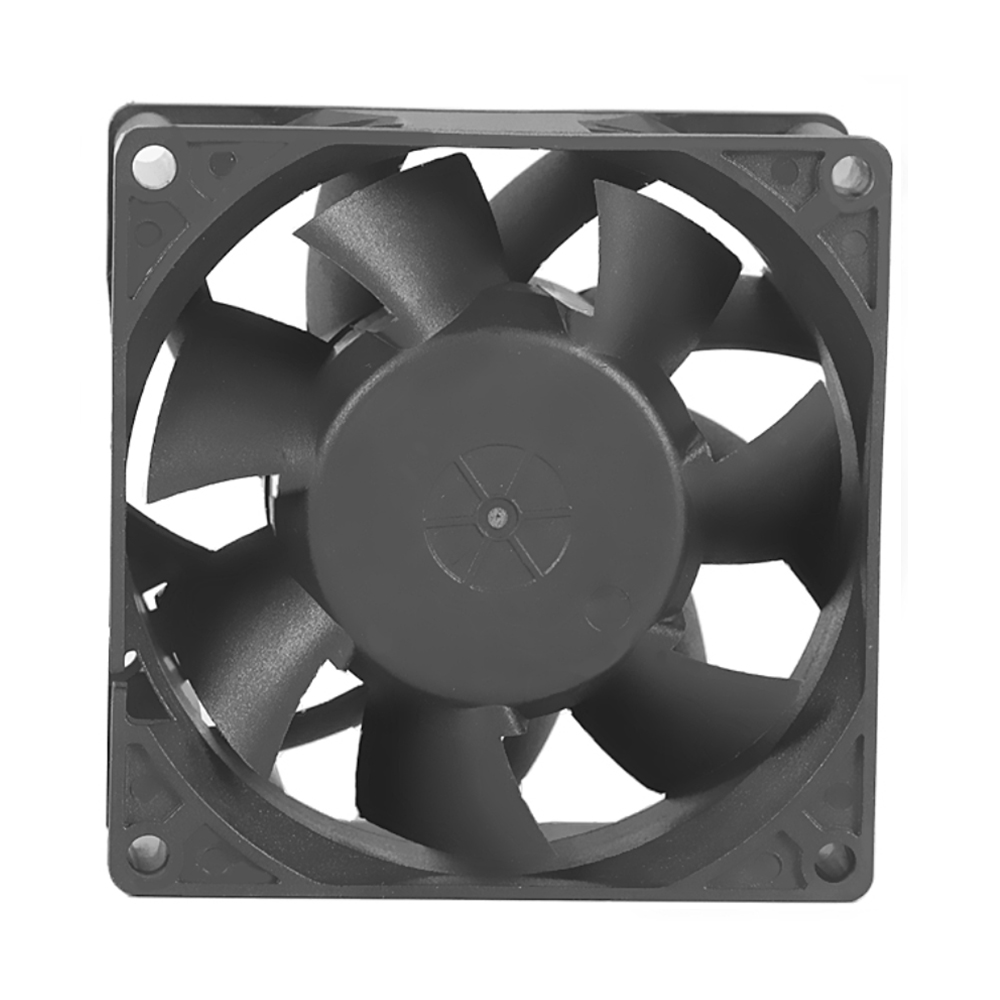

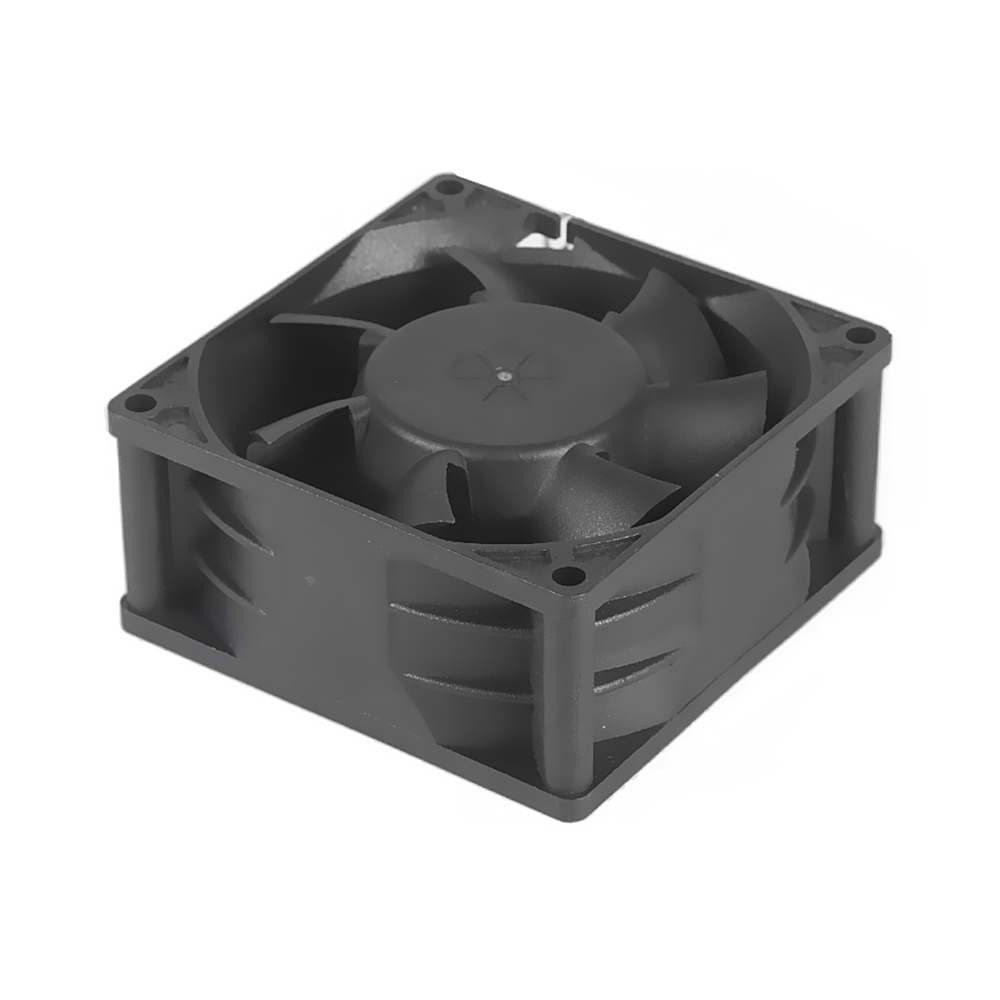

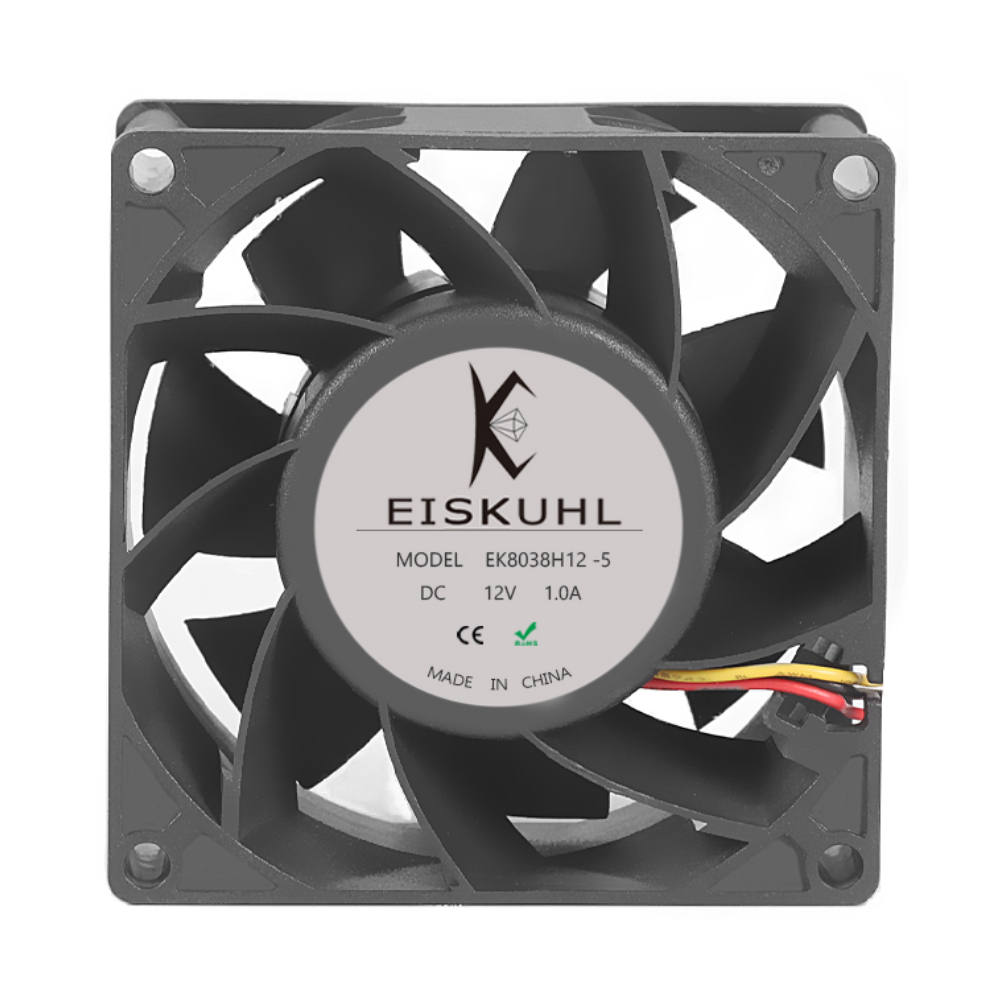

EK8038H12-5 8038 12V Fan Soft Start 80X80X38mm Brushless Motor Cooling Fans

EK8038H12-5

Model Size: 80*80*38mm

Motor: DC Brushless Fan Motor

Bearing: Ball/Sleeve/Hydraulic

Weight:170g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions80x80x38mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V12
Airflowin CFM74.74
Air Pressurein mmH2O17.16
Speedin RPM6000
Rated Currentin A1.00
Power Inputin W12.00
Sound Pressure Levelin dB(A)56.2
Nominal Valtage rangein VDC7~13.5V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
