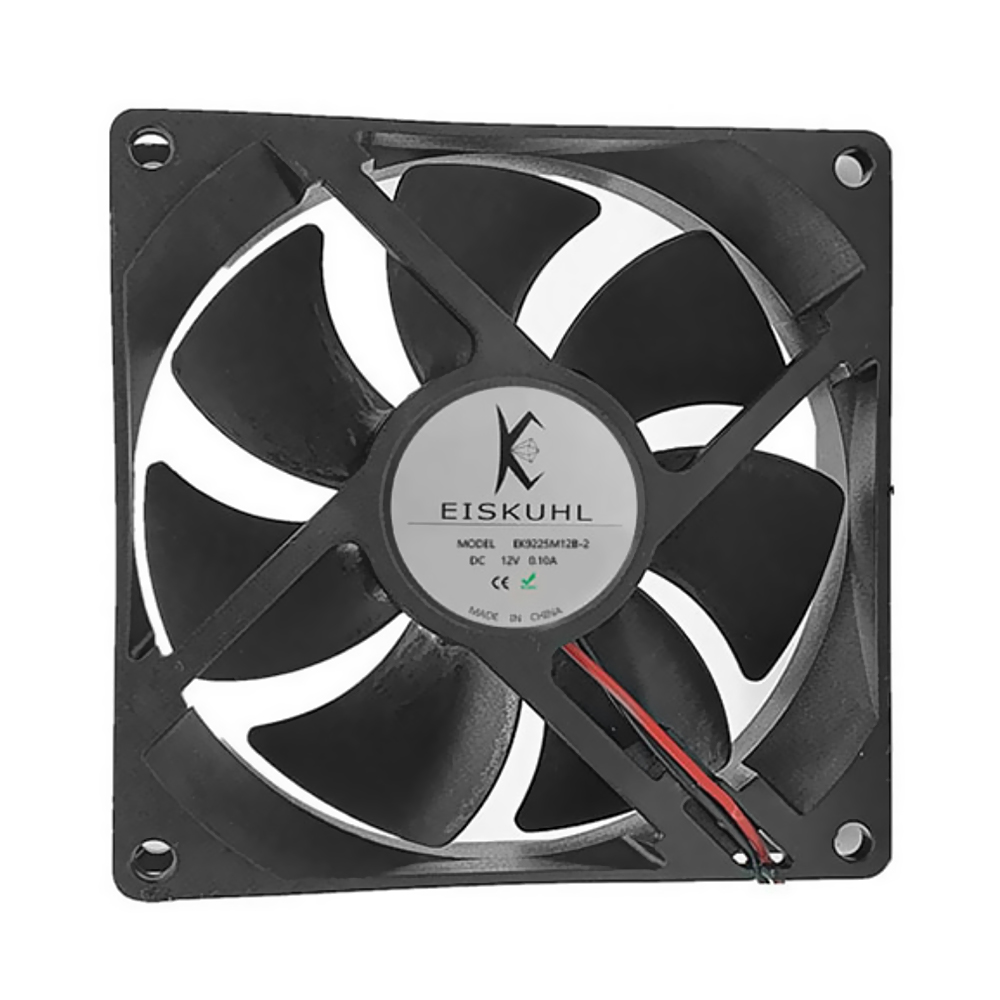

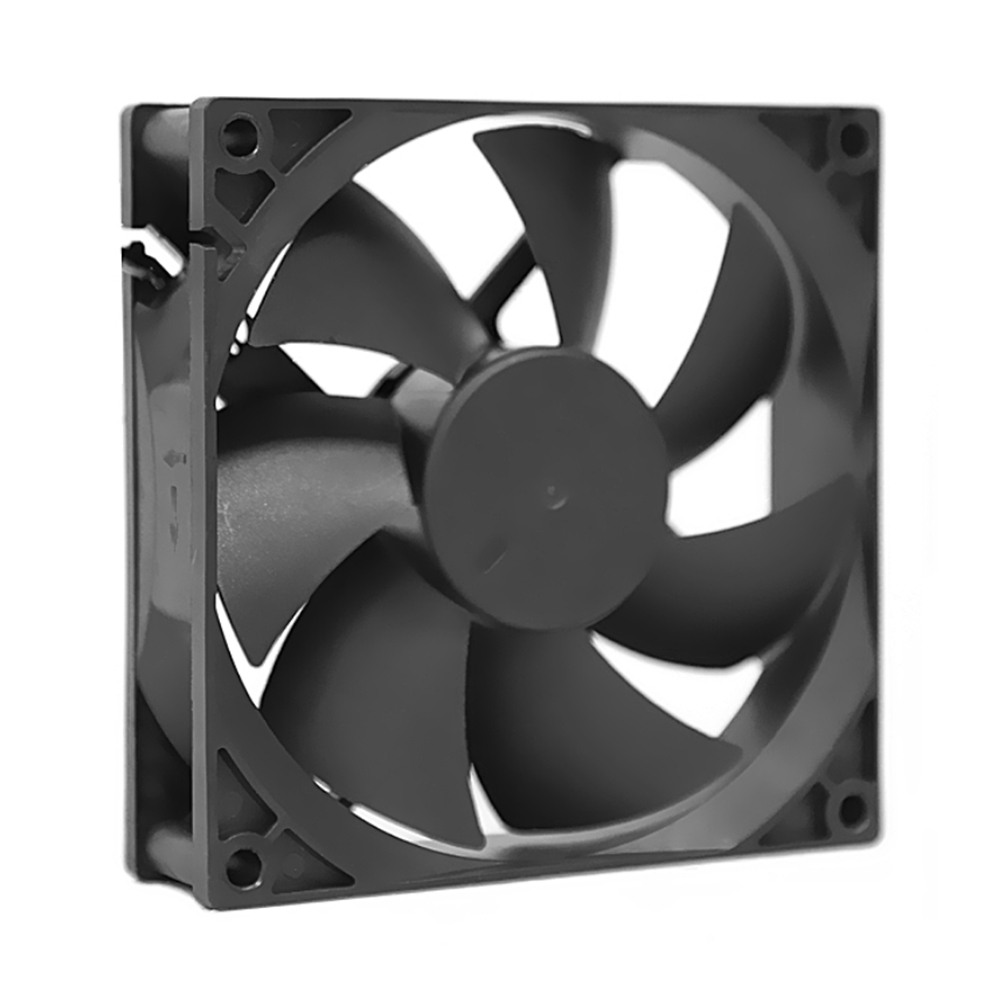

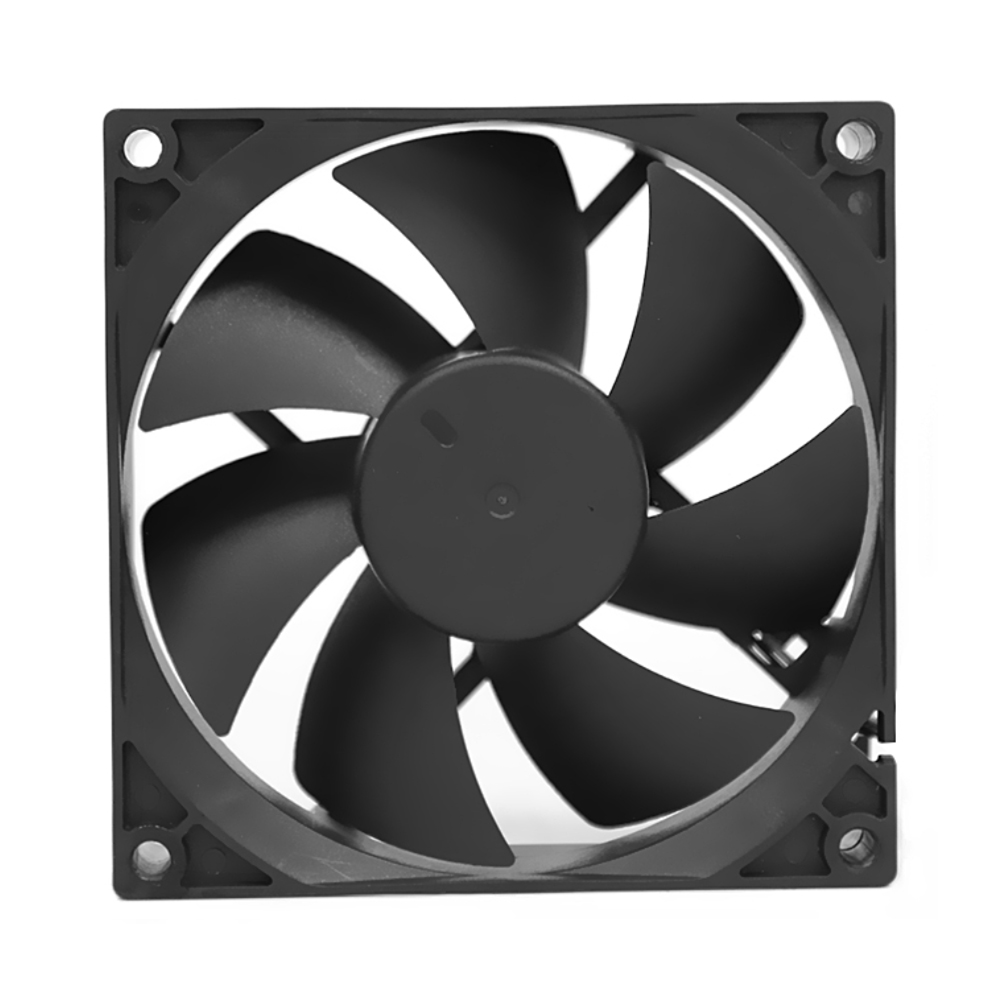

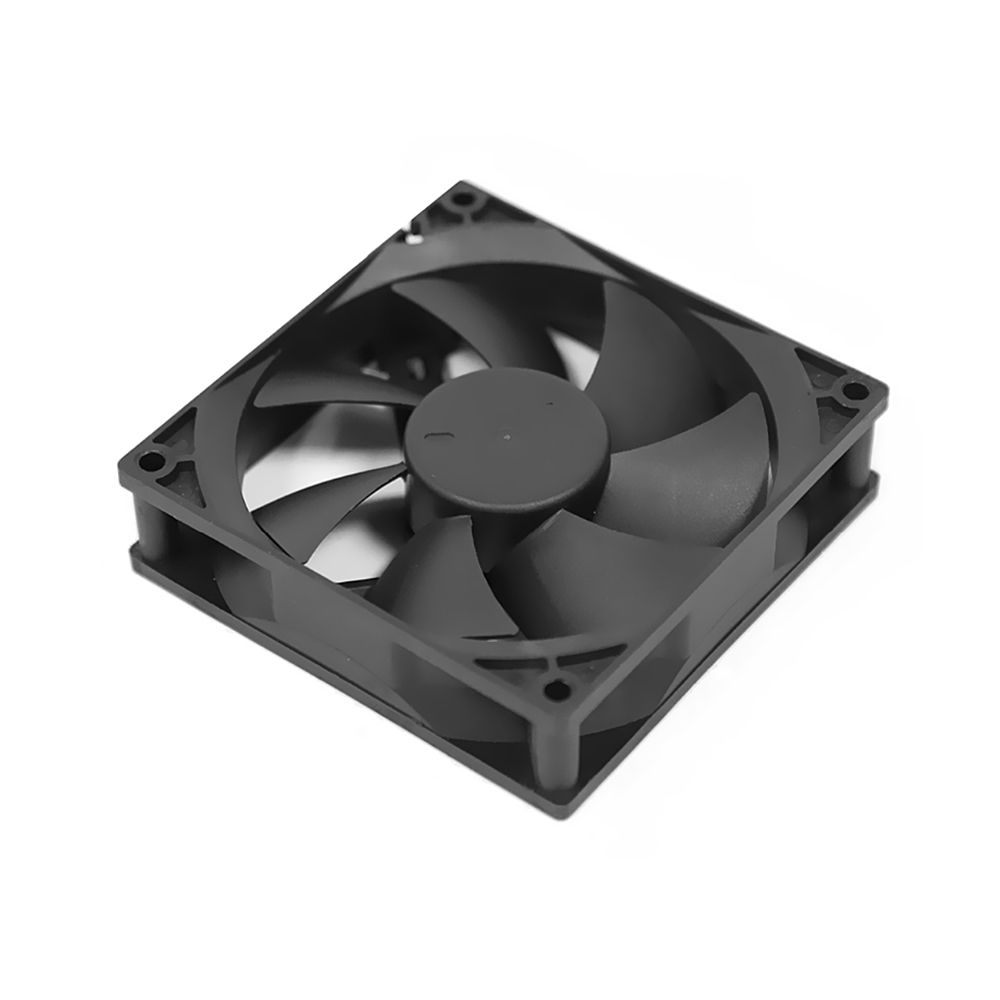

Model Size: 92*92*25mm
Motor:DC Brushless Fan Motor
Bearing:Ball/Sleeve/Hydraulic
Weight: 98g
Direction of rotation:Clockwise,viewed toward rotor
| Dimensions | 92x92x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Ball bearing system |
| Life expectance | 60,000 hrs by sleeve bearing system |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Optional wire | "Sensor"yellow/"PWM"blue |
| Type of Voltage | DC | |
| Nominal Valtage | in V | 12 |
| Airflow | in CFM | 40.23 |
| Air Pressure | in mmH2O | 3.23 |
| Speed | in RPM | 2500 |
| Rated Current | in A | 0.10 |
| Power Input | in W | 1.20 |
| Sound Pressure Level | in dB(A) | 35.6 |
| Nominal Valtage range | in V | DC7~13.5V |
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~80°C (Non-condensing) |
| Operating Humidity | 5%~95%RH |
| Storage Humidity | 5%~95%RH |
