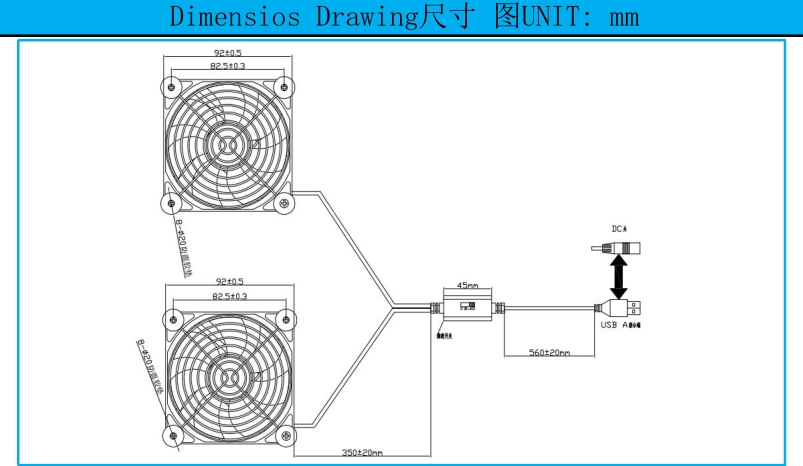

Model Size: 90*90*25mm
Motor: DC Brushless Fan Motor
Bearing: Ball
Weight:385g
Direction of rotation:Clockwise,viewed toward rotor
Package Size: 120*120*100mm
Outer Box Size: 57*53*26cm/44pcs/17.74kg
| Dimensions | 90x90x25mm |
| Impeller material | Plastic PBT(UL94V-0) |
| Direction of rotation | Clockwise, viewed toward label |
| Bearing | Sleeve bearing system |
| Life expectance | 30,000 hrs by sleeve bearing system |
| Cable | UL1571AWG#28 (+) Red, (-) Black, stripped and tin-plated |
| Motor protection | Protection against reverse polarity |
| Locked rotor protection | |
| Automatic restart capability | |
| Option | Possible custom designs; Speed ,signal ,Moisture protection. |
| Optional wire | "Sensor"yellow/"PWM"blue |
| Type of Voltage | DC | |||
| Nominal Valtage | in V | 5V | ||

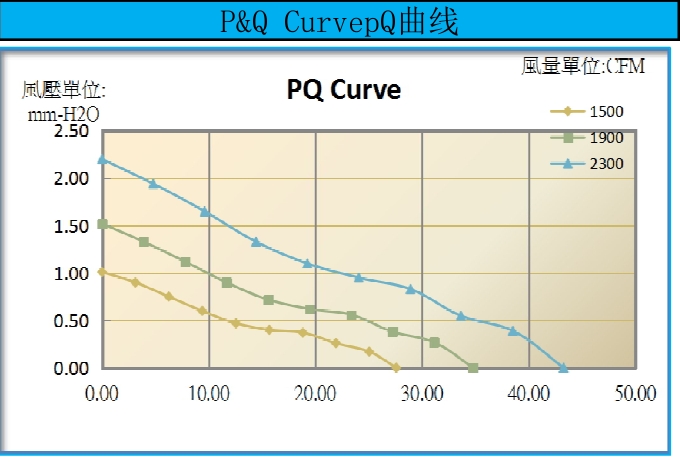

| Airflow | in CFM | 27.59 | 34.79 | 43.28 |
| Air Pressure | in mmH2O | 1.01 | 1.52 | 2.20 |
| Speed | in RPM | 1500 | 1900 | 2300 |
| Rated Current | in A | 0.5 | ||
| Power Input | in W | 2.5 | ||
| Sound Pressure Level | in dB(A) | |||
| Nominal Valtage range | in V | DC4.3~5.4V | ||
| Operating temperature | -10°C~70°C(Non-condensing) |
| Storage Temperature | -40°C~80°C (Non-condensing) |
| Operating Humidity | 5%~95%RH |
| Storage Humidity | 5%~95%RH |
