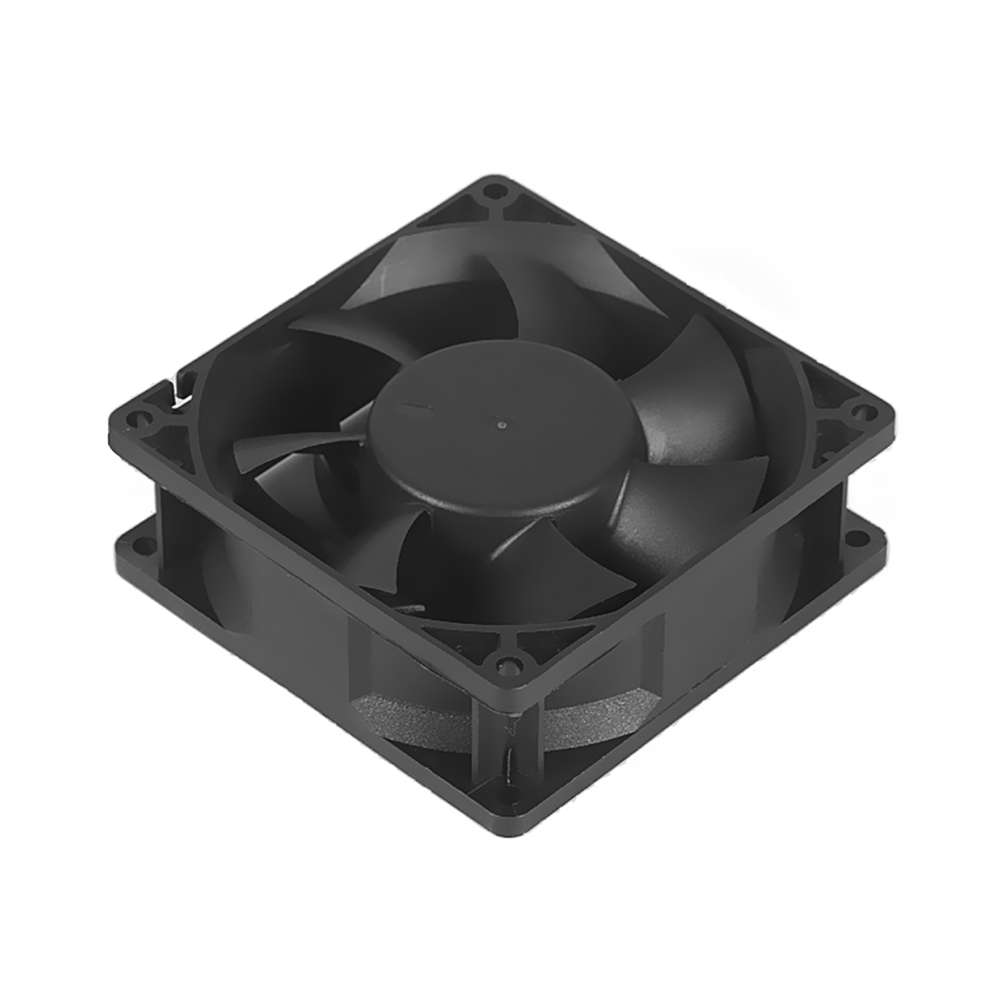

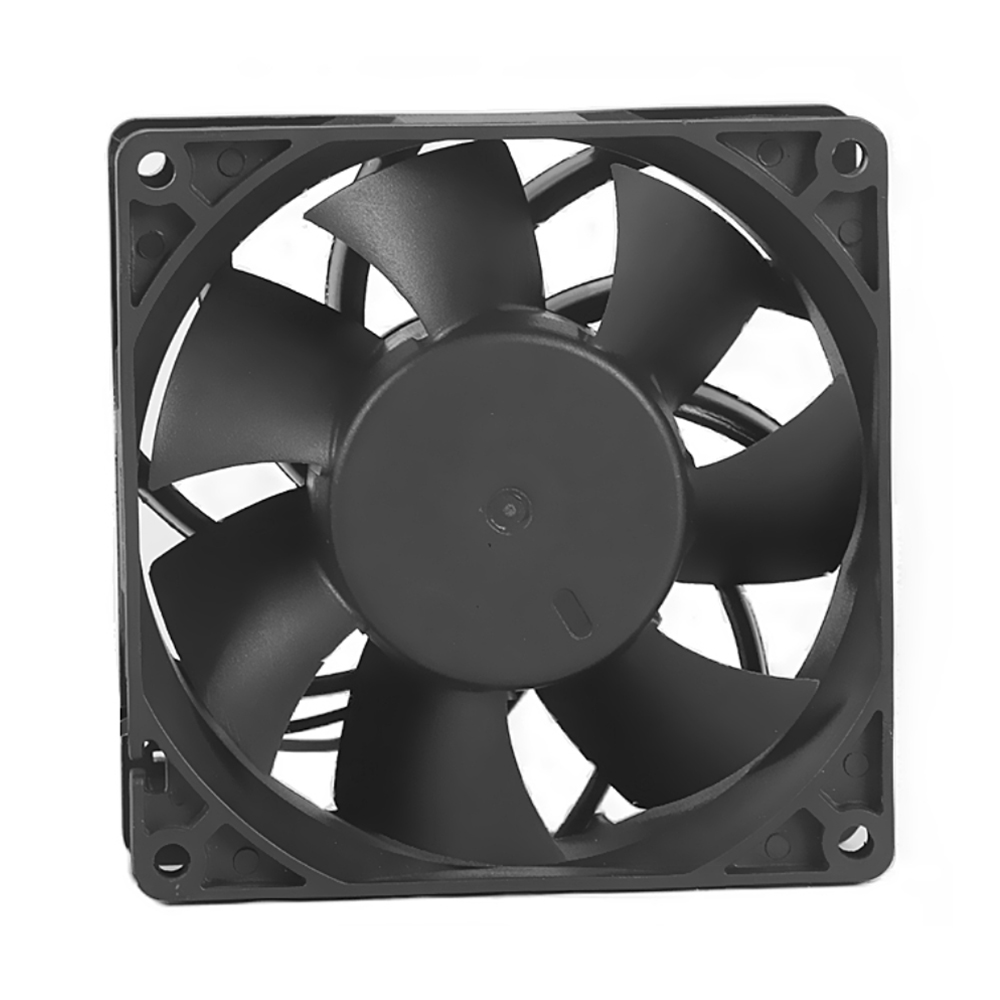

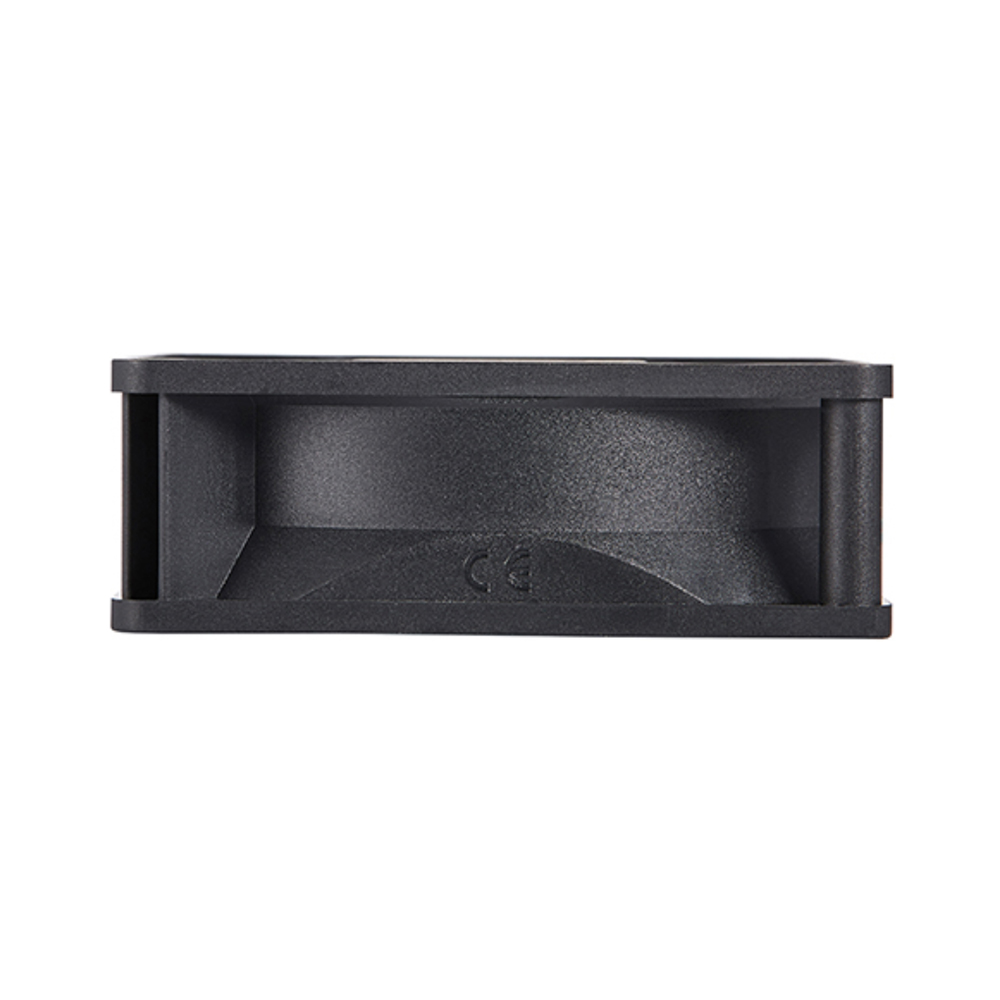

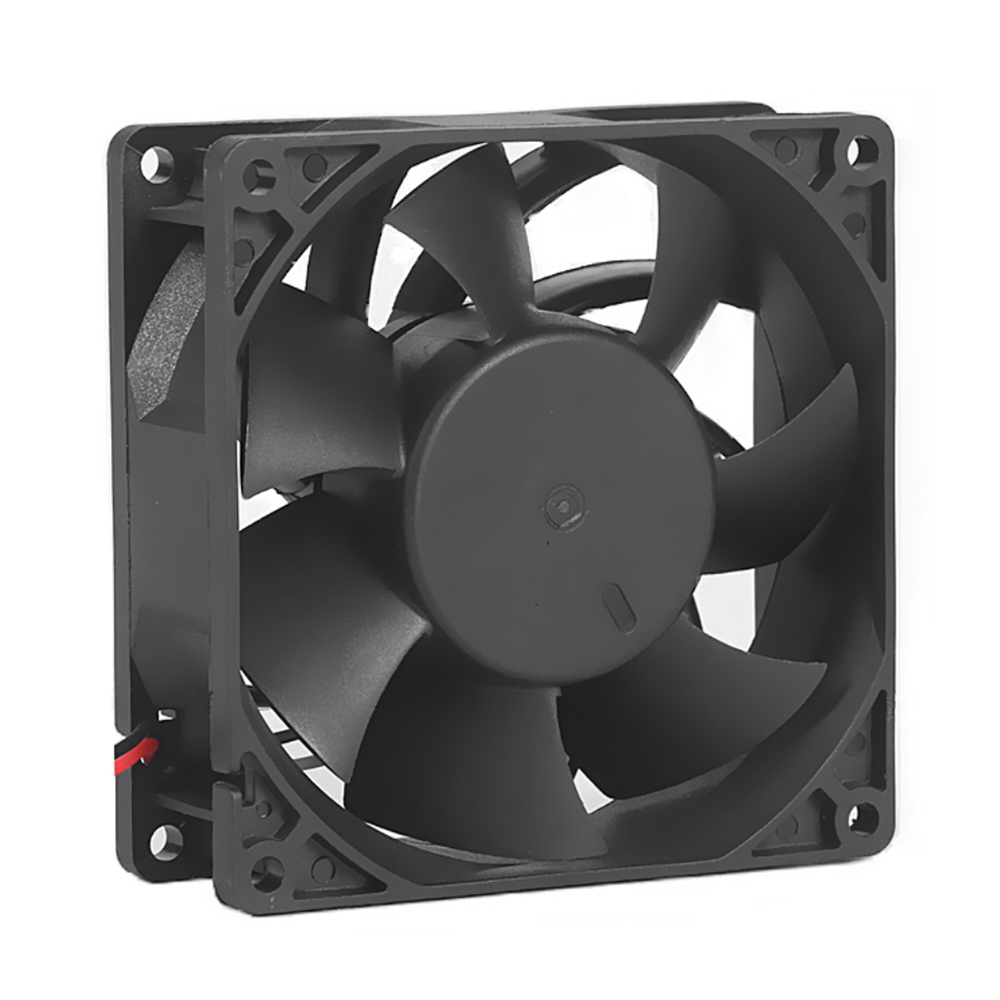

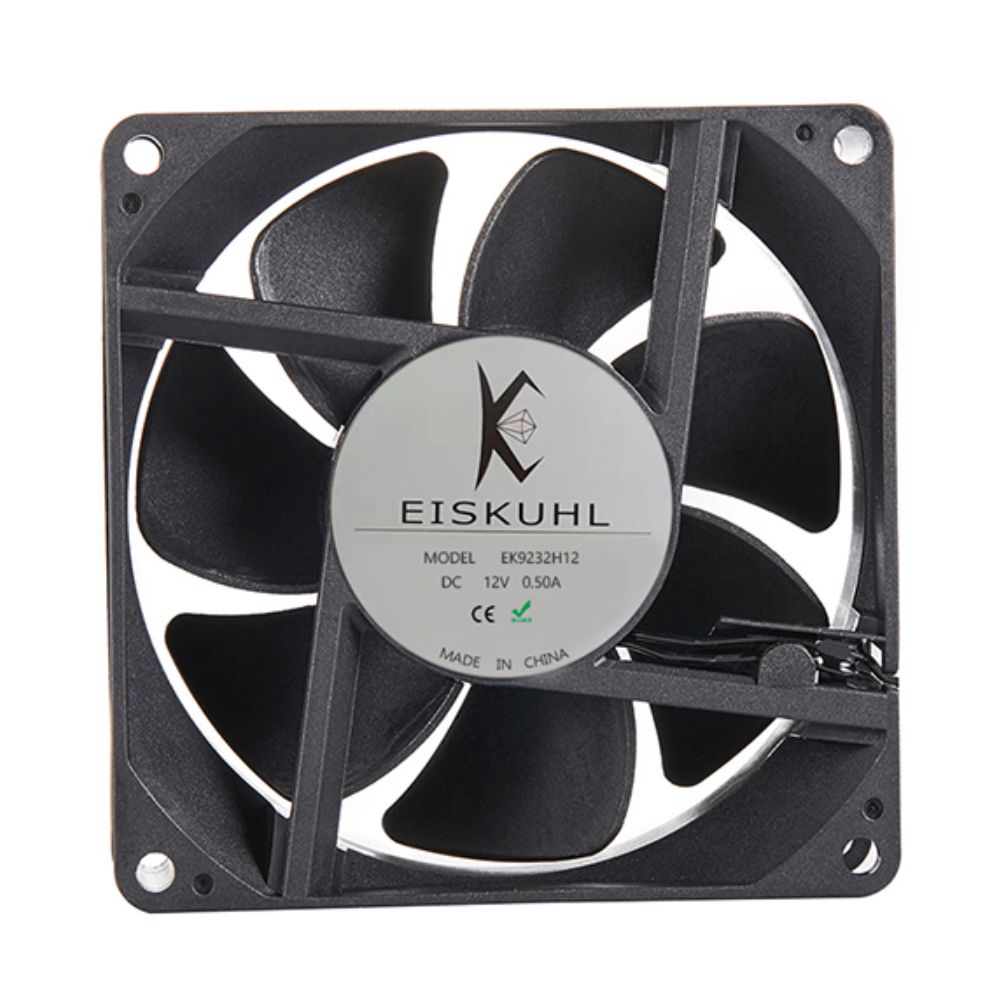

EK9232H12 92*92*32mm Brushless DC Cooling Fans for PS4

EK9232H12

Model Size: 92*92*32mm

Motor:DC Brushless Fan Motor

Bearing:Ball/Sleeve/Hydraulic

Weight: 170g

Direction of rotation:Clockwise,viewed toward rotor

Share this:

Technical Description

Dimensions92x92x32mm
Impeller materialPlastic PBT(UL94V-0)
Direction of rotationClockwise, viewed toward label
BearingBall bearing system
Life expectance60,000 hrs by sleeve bearing system
Motor protectionProtection against reverse polarity
Locked rotor protection
Automatic restart capability
OptionPossible custom designs; Speed ,signal ,Moisture protection.
Optional wire"Sensor"yellow/"PWM"blue

Nominal Data

Type of Voltage
DC
Nominal Valtagein V12
Airflowin CFM78.97
Air Pressurein mmH2O10.51
Speedin RPM4000
Rated Currentin A0.50
Power Inputin W6.00
Sound Pressure Levelin dB(A)43.9
Nominal Valtage rangein VDC7~13.5V

Environmental Characters

Operating temperature-10°C~70°C(Non-condensing)
Storage Temperature-40°C~80°C (Non-condensing)
Operating Humidity5%~95%RH
Storage Humidity5%~95%RH

2D Dimension Drawing

PQ Curve
